All stock codes associated to this product
QSWM21082C, QSW-M2108-2C, QN17043

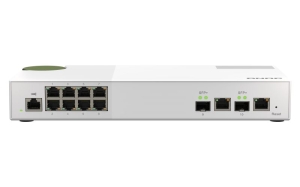

QNAP QSW-M2108-2C Entry-level 10GbE and 2.5GbE Layer 2 Web Managed
Switch for SMB Network Deployment
Overview
The QSW-M2108-2C is a Layer 2 Web Managed Switch with two 10GbE SFP+/RJ45
combo ports and eight 2.5 Gigabit ports. Supporting Layer 2 switching and
network management via a user-friendly web user interface, the QSW-M2108-2C
offers flexible deployment in hybrid high-speed network environments and
provides an entry-level network management solution that is usable even by
non-IT professionals. The QSW-M2108-2C is compatible with 10GbE and NBASE-T
technologies, supporting up to five speeds (10G / 5G / 2.5G / 1G / 100M) to
provide higher transmission speeds with existing Cat 5e and 6a cables. With high
performance, user-friendly management, and desktop form factor, the QSW-M2108-2C
enables cost-effective upgrading to 2.5GbE or 10GbE networking while optimizing
bandwidth and ensuring secure network maintenance.
10GbE connectivity
Includes two 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T
technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing
cables.
User-friendly management interface
The QNAP Switch System (QSS) is easy to use and provides an overview
dashboard, port management and setting guide, making central network management
intuitive.
Layer 2 network
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for
IT staff to efficiently control network bandwidth and enhance
security.
RSTP protocol
One of the few web-managed switches that supports Rapid Spanning Tree
Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that
support expansion, redundancy, and loop prevention.
Energy saving
Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow
Control in full-duplex mode, QSW-M2108-2C avoids packet loss from unparalleled
bandwidth and reduces power consumption for low-speed and inactive
connections.
Online OS update
QSS can be updated with just one click, helping IT staff ensure their network
security.
Specifications
|
Management
Type |
Web
Managed |
|
Number
of Ports |
10 |
|
10GbE
SFP+/RJ45 Combo Ports |
2 |
|
2.5GbE
(RJ45) |
8 |
|
Power
Supply Description |
Adapter |
|
Max.
Power Consumption |
36W |
|
Input
Power Type |
DC |
|
Input
Voltage Range |
12V |
|
MAC
Address Table |
16K |
|
Total
Non-Blocking Throughput |
40Gbps |
|
Switching
Capacity |
80Gbps |
|
Management
Interface |
Web |
|
Console |
RJ45 |
|
Energy
Efficient Ethernet (IEEE 802.3az complaint) |
Yes |
|
Fan |
PWM
double ball bearing fan x 1 |
|
Supported
Standards |
IEEE
802.3 Ethernet |
|
IEEE
802.3u 100BASE-T |
|
IEEE
802.3ab 1000BASE-T |
|
IEEE
802.3bz 2.5G/5GBase-T |
|
IEEE
802.3an 10G BASE-T |
|
IEEE
802.3z 1000BASE-SX/LX |
|
IEEE
802.3ae 10G Fiber |
|
IEEE
802.3x Full-Duplex Flow Control |
|
IEEE
802.1Q VLAN Tagging |
|
IEEE
802.1w RSTP |
|
IEEE
802.3ad LACP |
|
IEEE
802.1AB LLDP |
|
IEEE
802.3az Energy Efficient Ethernet |
|
(IEEE
802.1p Class of Service) |
|
Form
Factor |
Desktop |
|
LED
Indicators |
Per
Port: Speed/Link/Activity |
|
Per
System: Power/Status |
|
Buttons |
Reset
button |
|
Dimensions
(HxWxD) |
42.5
x 290 x 127 mm |
|
Weight
(Net) |
1.12
kg |
|
Weight
(Gross) |
1.54
kg |
|
Operating
Temperature |
0C
to 40C (32F to 104F) |
|
Relative
Humidity |
5~95%
Non-condensing |
|
Certifications |
CE,
FCC, VCCI, BSMI |
|
Electromagnetic
Compliance |
CLASS
B |
|
Jumbo
Frames |
9K |
|
Warranty |
2
Years |
