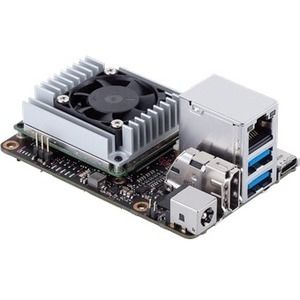

Asus Tinker Edge T
Overview
Develop and deploy powerful AI applications
- SBC developer board featuring the Google Edge TPU and ARM processor for AI
applications, an advanced power design and easy machine-learning model
deployment
- Google Edge TPU
- More connectivity options for developers
- Multi-platform tools for easy machine-learning model deployment and image
burning
AI accelerator (Edge TPU)
Tinker Edge T is a single-board computer (SBC) specially designed for AI
applications. It features the Google Edge TPU, a machine learning (ML)
accelerator that speeds up processing efficiency, lowers power demands and makes
it easier to build connected devices and intelligent applications. With this
onboard ML accelerator, Tinker Edge T is capable of performing four
tera-operations per second (TOPS) using only 0.5 watts per unit of computation.
It is also optimized for TensorFlow Lite models, making it easy to compile and
run common ML models.
- Google Edge TPU ML accelerator
- 4 TOPS Performance
- 0.5 W/unit power consumption
- TensorFlow Lite Supported
ADVANCED POWER DESIGN
Most SBC motherboards only offer a 15 watt (5V 3A) power design, which can
cause device and system instability when there are multiple connected devices.
Other SBCs have power designs that lower the performance of their I/O ports.
Tinker Edge T has a special power design that, together with a DC head power
supply, delivers up to 45 watts of power, enabling stable system operation and
full I/O performance, even with multiple connected devices. Additionally, an
exclusive power-protection design activates automatically if the supplied
current and voltage change significantly, effectively protecting the board and
all connected devices.

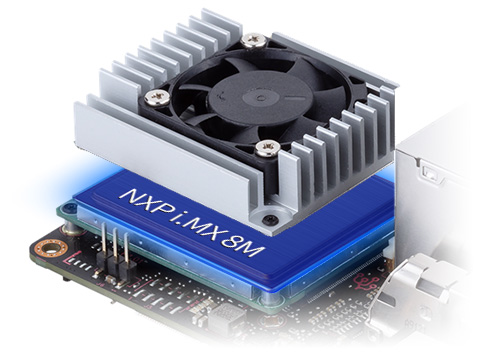

NXP I.MX 8M PROCESSOR
With its powerful and modern quad-core ARM-based NXP i.MX 8M processor,
Tinker Edge T offers a powerful solution for graphics, machine vision, video,
audio, voice and safety-critical applications. Tinker Edge T features 1 GB of
LPDDR4 memory, the 4th generation of low-power DDR DRAM technology, offering
faster speeds and even lower power consumption for improved system performance
and efficiency. Tinker Edge T also comes equipped with an onboard 8 GB eMMC and
SD 3.0 interface that offers significantly faster read and write speeds for the
OS, applications and file storage.
HEATSINK INCLUDED
Tinker Edge T includes an active heatsink, which helps improve heat
dissipation under heavy loading or in hot ambient environments.
MORE CONNECTIVITY OPTIONS FOR DEVELOPERS
Tinker Edge T features a rich I/O interface, including one MIPI-DSI
connection for displays and touch screens, and two MIPI-CSI connections for
compatible cameras to enable computer vision for applications such as depth
measurement, smart vending machine QR code payment systems and interactive
advertising.
Tinker Edge T has a maker-friendly design that offers many carefully
considered features to provide a superior experience for first-time builders and
seasoned hobbyists alike. Programmable LEDs let makers develop custom lighting
behaviors, such as system notifications and status indicators, and the
color-coded GPIO header makes it easy to recognize respective pin
headers.
Tinker Edge T also features a full-size HDMI port, USB Type-A, USB Type-C,
gigabit LAN and integrated Wi-Fi and Bluetooth for internet and network
connectivity.
- MIPI-DSI x1 Support
- MIPI-CSI x2 Support
- Programmable LEDs Support
- Color-Coded GPIO Support
ENHANCED USER EXPERIENCE
Machine Learning Developer Tools
ASUS provides a robust API and SDK that enables users to deploy machine
learning models to Tinker Edge T easily for applications such as image
classification and object detection.
OS Flash Tool*
Tinker Edge T comes with a cross-platform OS flash tool that enables easy OS
image flashing to SD cards and USB drives, enabling you to get your system up
and running quickly.
Specifications
SoC |
NXP
i.MX 8M |
CPU |
LPDDR4
1GB |
GPU |
GC7000
Lite |
NN
processor |
Google
Edge TPU ML accelerator coprocessor |
Display |
1
x HDMI with CEC hardware ready |
1
x 22-pin MIPI DSI |
Memory
Size |
Dual-CH
LPDDR4 1GB |
Storage |
8GB
eMMC |
Micro
SD(TF) card slot (push/pull) |
Connectivity |
1
x RTL8211F-CG Gb LAN |
1
x 802.11 a/b/g/n/ac wireless & Bluetooth
4.2 |
USB |
2
x USB 3.2 Gen1 Type-A |
1
x USB 3.2 Gen1 Type-C OTG |
Camera
Interface |
2
x 24-pin MIPI CSI-2 |
Internal
Headers |
1
x 40-pin headers includes: |
-
up to 28 x GPIO pins |
-
up to 1 x SPI bus |
-
up to 2 x I2C bus |
-
up to 2 x UART |
-
up to 3 x PWM |
-
up to 1 x PCM/I2S |
-
2 x 5V power pins |
-
2 x 3.3V power pins |
-
8 x ground pins |
1
x Boot mode switch |
1
x 2-pin Reset header |
1
x 2-pin DC Fan header |
Power
Connector (up to 45W) |
12~19v
DC Power Input Jack (5.5/2.5mm) |
OS
Support |
Debian
9 |
Dimension |
3.37
inch x 2.125 inch (8.55 cm x 5.4 cm) |
Environment |
Operation
temperature: 0 ~ 50 |
Non
operation temperature: -40 ~ 80 |
Non
operation humidity: 0% ~ 85% (Non
condensing) |
