All stock codes associated to this product
32SM5JB, 32SM5J-B, LG32SM5JB, LG-32SM5J-B, 8806091352378

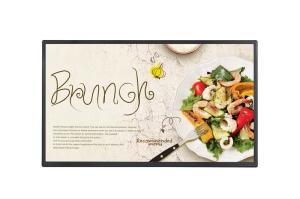

LG 32SM5J Full HD Standard Signage
Overview
- Brightness(Typ.) : 400 cd/m
- Bezel : 13 mm (T/R/L), 18 mm (B)
- Depth : 55.5 mm
- Interface : HDMI(3) / USB 2.0 / RS232C / RJ45 / IR / Audio Out
- Built-in Speaker : 10W + 10W
Specifications
|
PANEL |
|
|
Screen
Size |
32" |
|
Panel
Technology |
IPS |
|
Native
Resolution |
1,920
x 1.080 (FHD) |
|
Brightness |
400
nit (Typ.) |
|
Contrast
Ratio |
1,100:1 |
|
Dynamic
CR |
1,000,000:1 |
|
Viewing
Angle (H x V) |
178
x 178 |
|
Response
Time |
10
ms (G to G) |
|
Surface
Treatment (Haze) |
1% |
|
Operation
Hours (Hours/Day) |
24/7 |
|
Orientation |
Portrait
/ Landscape |
|
CONNECTIVITY |
|
|
Input |
HDMI
(3, HDCP 2.2), USB 2.0 ( Type A) |
|
Output |
Audio
Out (Off / Fixed / Variable) |
|
External
Control |
RS-232C
In/Out (Phone-jack Type), RJ45 In (LAN), IR In (Phone-jack
Type) |
|
MECHANICAL
SPECIFICATION |
|
|
Bezel
Color |
Black |
|
Bezel
Width |
13
mm (T/R/L), 18 mm (B) |
|
Monitor
Dimension (W x H x D) |
729.4
mm x 428.9 mm x 55.5 mm |
|
Weight
(Head) |
5.7
kg |
|
Monitor
Dimension with Stand (W x H x D) |
729.4
mm x 481 mm x 154.2 mm |
|
Weight
(Head + Stand) |
6.5
kg |
|
VESA
Standard Mount Interface |
200
x 200 mm |
|
KEY
FEATURE |
|
|
Key
Feature |
Internal
Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor,
Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling,
Group Manager), USB Plug & Play, Fail Over, Background Image (Booting
Logo Image, No Signal Image), Screen Share, Play via URL, Setting Data
Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager,
Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC (Compatibility
may differ by equipment), SI Sever Setting, webRTC,
Pro:Idiom |
|
ENVIRONMENT
CONDITIONS |
|
|
Operation
Temperature |
0C
to 40C |
|
Operation
Humidity |
10%
to 80% |
|
POWER |
|
|
Power
Supply |
AC
100-240 V~, 50/60 Hz |
|
Power
Type |
Built-In
Power |
|
POWER
CONSUMPTION |
|
|
Typ.
/ Max. |
55
W / 75 W |
|
BTU
(British Thermal Unit) |
187.67
BTU/Hr (Typ.), 255.911 BTU/Hr (Max.) |
|
SOUND |
|
|
Speaker |
Yes
(10 W x 2 EA) |
|
CERTIFICATION |
|
|
Safety |
CB
/ NRTL |
|
EMC |
FCC
Class "A" / CE |
|
ErP
/ Energy Star |
No
/ Yes |
|
SOFTWARE
COMPATIBILITY |
|
|
Software
Compatibility |
SuperSign
CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor,
Promota (Not available for Europe/CIS region), LG
ConnectedCare |
|
ACCESSORY |
|
|
Basic |
Remote
Controller, Power Cord, QSG, HDMI Cable, Phone to RS-232C
Gender |
|
Optional |
Stand
(ST-322T), Wall Bracket (LSW230B), VESA Adapter
(AM-B220S) |
