All stock codes associated to this product
PDU81404, CP89347, 4302424, 4712856277227

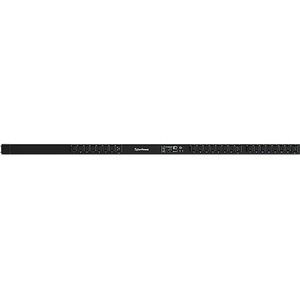

CyberPower PDU81404 PDU - Switched with Metered-by-Outlet - IEC 60309 16A - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 16 A - 230 V AC Input - 230 V AC Output - 0U Network (RJ-45) - Vertical - Rack-mountable
CyberPower PDU81404
Ideal for data center and enterprise applications, the Switched Metered-by-Outlet PDU Series is a network-grade power distribution unit, providing real-time local/remote monitoring and on/off control of individual outlet for remote reboots, scheduled on/off and more. The digital LCD display is hot-swappable, color configurable and rotatable, allowing users to easily maintain and monitor the PDU. The product is compatible with PowerPanel Power Management Software and CyberPower ENVIROSENSOR for real-time monitoring and configuration. Other features include Cisco EnergyWise, IEC receptacle locking and user-upgradeable firmware.
features
- Real-Time Local/Remote Monitoring and Switching of Individual Outlet
- 1% Measurement Accuracy
- Ultra Low Power Consumption
- Controllable Receptacles with Power Sequencing
- User Configurable Color LCD
- Rotatable LCD for Proper Display Orientation
- Firmware Upgrade via USB
- PowerPanel Management Software
- Work under High Temperature
Interfaces/Ports
Warranty
Management
| Management | Protocoles:- IPv4
- IPv6
- SNMPv1
- SNMPv3
- HTTP
- HTTPs
- TCP/IP
- UDP
- DHCP
- NTP
- DNS
- SMTP
- SSH
- SSL
- TLS
- Telnet
- FTP
- Syslog
Authentication:- RADIUS
- LDAP
- LDAPS
- Windows AD
Softwares:
- CyberPower PowerPanel Business Edition
- Cisco EnergyWise
|
| Remote Outlet Switching | Yes |
Miscellaneous
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 16 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
General Information
| Product Type | PDU |
| Manufacturer Part Number | PDU81404 |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU81404 |
| Product Name | PDU81404 24-Outlets PDU |
| Brand Name | CyberPower |
Physical Characteristics
| Weight (Approximate) | 6.99 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 1666.2 mm |
| Width | 55.9 mm |
| Depth | 48.3 mm |
| Mounting Orientation | Vertical |
Technical Information
| Plug/Connector Type | IEC 60309 16A |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 |
| PDU Type | Switched with Metered-by-Outlet |
| Receptacle Detail | 21 x IEC 60320 C13 |
| 3 x IEC 60320 C19 |
| Plug/Connector Detail | 1 x IEC 60309 16A |
Networking
