SBP20KP | APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output

Buy PC parts - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Networking -> Power Distribution Units (PDUs) -> APC

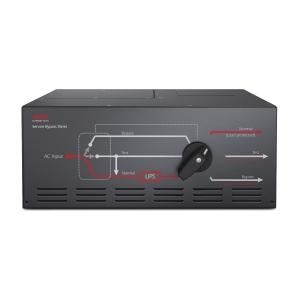

APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output - 4U

Our Price:

$4,551.30

RRP:

~~$5,025.00~~

You Save:

$473.70

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

520854

(?) Brand:

APC Web Site

Manuf No:

SBP20KP

Shipping Weight:

19.32 KG (Includes product packaging)
Estimate Shipping

Date Added:

11/11/2022

Add to wishlist

Write a Review

Details Files Finance Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

SBP20KP, 1703320, 731304266952

APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output

Overview

Main
Main Input Voltage	200 V
	208 V
	220 V
	230 V
	240 V
	380 V 3 phases
	400 V 3 phases
	415 V 3 phases
Main Output Voltage	200 V
	208 V
	220 V
	230 V
	240 V
output connector type	Hard wire 3-wire (H N + E) 1
output connector type	Hard wire 3-wire (2P + E) 1
Number of rack unit	4U
Number of cables	1
Provided equipment	Installation guide
	Rack mounting brackets
	User manual
Physical
Colour	Black
Height	17.8 cm
width	43.2 cm
Depth	55.4 cm
Net weight	19.32 kg
mounting location	Front
mounting preference	Lower
mounting mode	Rack-mounted
Input
network frequency	50/60 Hz
number of input connectors	1 hard wire 3-wire (H N + E)
	1 hard wire 3-wire (2P + E)
	1 hard wire 5-wire (3P + N + E)
permissible voltage	200240 V
Max line current	125 A
input current limits	125 A
Load capacity	20000 VA
power factor	01
Output
Max current draw	125 A
protection type	Circuit breaker
efficiency	99%
Conformance
product certifications	CSA
product certifications	GOST
Environmental
Ambient air temperature for operation	-2050 C
relative humidity	095 %
Operating altitude	0...15000 ft
Ambient air temperature for storage	-4065 C
storage Relative Humidity	095 %
Storage altitude	0.0015240.00 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	30.5 cm
Package 1 Width	84.5 cm
Package 1 Length	61 cm
Package 1 Weight	31.36 kg
Contractual warranty
Warranty	2 years (parts only)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 24 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (APC) web site.
