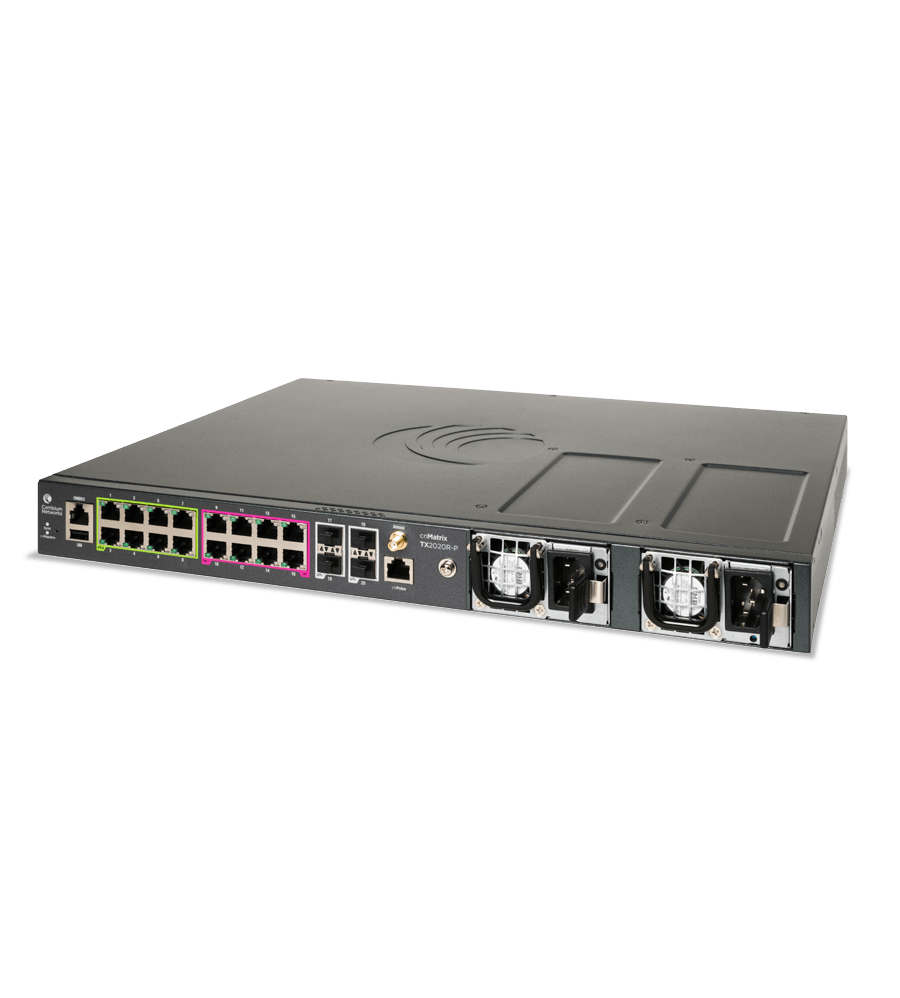

Cambium Networks cnMatrix TX 2020R-P Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U, cnMatrix TX 2020R-P - Intelligent Ethernet PoE Switch, Cambium Sync, 16 x 1 Gbps and 4 SFP+, Removable &

Our Price:

$3,172.40

RRP:

~~$3,882.00~~

You Save:

$709.60

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

523974

(?) Brand:

Cambium Networks

Manuf No:

MXTX2020GxPA10

Shipping Weight:

4 KG (Includes product packaging)
Estimate Shipping

Date Added:

26/10/2022

Add to wishlist

Write a Review

Details Files Finance Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

MXTX2020GxPA10, 16CNMXTX2020PR, 16CN-MXTX2020P-R, MXTX2020GXPA10, CBTX2020, 5704174890119

Cambium Networks cnMatrix TX 2020R-P Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

Manufacturer:	Cambium Networks
Category:	Networking
Sub-Category:	Network Switches
SKU:	MXTX2020GxPA10
EAN:	5704174890119 5704174522072

Description

cnMatrix TX provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE and Cambium synchronization in a single box solution that is easy to install and manage while improving network performance. Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.

Specifications

Management features
Reset button	Yes
Multicast support	Yes
Switch layer	L2/L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Network
IGMP snooping	Yes
IGMP entries	256
IGMP proxy	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
Number of VLANs	4000
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features
Number of VLANs	4000
VLAN support	Yes
Data transmission
Number of VLANs	4000
Jumbo frames	9000
MAC address table	16000 entries
Number of static routes	64
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	120 Mpps
Throughput	112 Gbit/s
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	4
Security
SSH/SSL support	Yes
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
IGMP entries	256
IGMP proxy	Yes
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMP v1/v2/v3
Design
Reset button	Yes
Rack mounting	Yes
Form factor	1U
Performance
Processor frequency	800 MHz
Internal memory	512 MB
Flash memory	128 MB
Mean time between failures (MTBF)	250744 h
Built-in processor	Yes
Power
Power supply included	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Operational conditions
Operating temperature (T-T)	-10 - 65 Ã‚Â°C
Storage temperature (T-T)	-40 - 70 Ã‚Â°C
Operating relative humidity (H-H)	55 - 95%
Weight & dimensions
Width	440 mm
Depth	350 mm
Height	44 mm
Weight	4.3 kg
Packaging data
Package width	551 mm
Package depth	485 mm
Package height	128 mm
Package weight	5.35 kg

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
