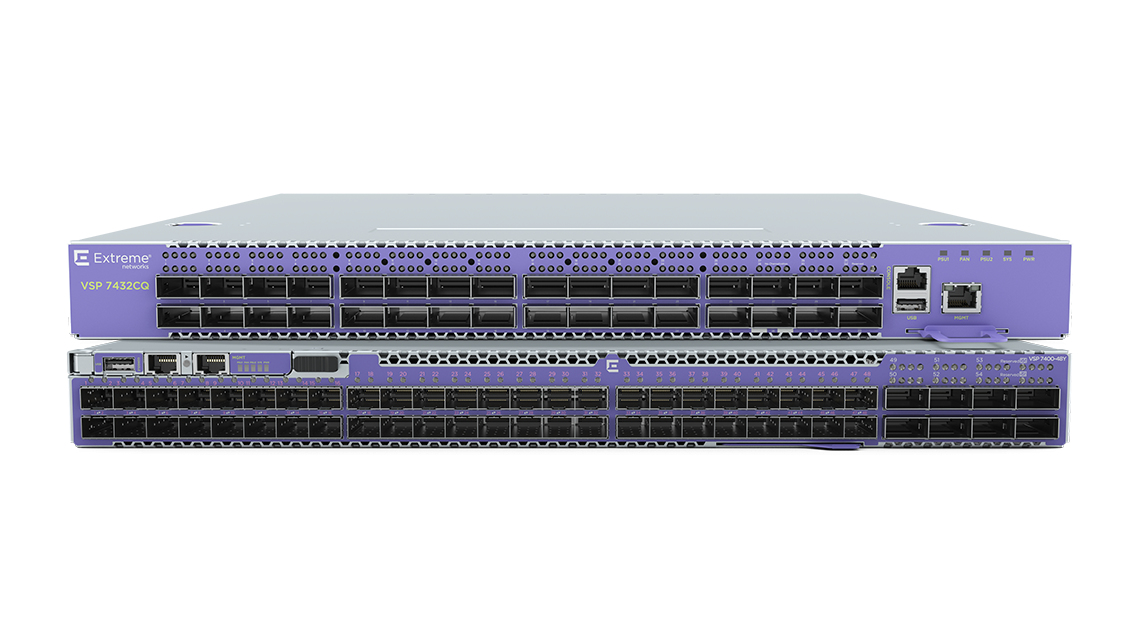

EXTREME NETWORKS VSP7400-48Y Managed L2/L3 Power over Ethernet (PoE) Violet, VSP7400-48Y-8C, 48 x SFP28 1G/10G/25G, 8 x QSFP28 40G/100G, microUSB type-A

IMG 1 of 1
Our Price:
$27,365.20
RRP:
$62,132.40
You Save:
$34,767.20
or quickly purchase this product
Backorder
Part Number:
527381
(?) Brand:
EXTREME NETWORKS
Manuf No:
VSP7400-48Y-8C
VSP740048Y8C
Shipping Weight:
7.42 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
VSP7400-48Y-8C, VSP740048Y8C

Extreme networks VSP7400-48Y Managed L2/L3 Power over Ethernet (PoE) Violet

Manufacturer: EXTREME NETWORKS
Category: Networking
Sub-Category: Network Switches
SKU: VSP7400-48Y-8C
EAN:

Description

Flexible Deployment Options The ExtremeSwitching VSP 7400 is designed to handle a range of high bandwidth applications, including high-density 10Gb, emerging 25Gb, as well as 40Gb and 100Gb core/aggregation or spine/leaf fabric deployments. Extreme Insight Architecture This flexible and open solution enables organizations to deploy Extreme-provided and/ or third-party applications and tools directly on the VSP 7400 system for real-time visibility. Extreme Fabric Connect Fabric Connect offers the ability to create a simplified virtualized network that can automate network provisioning and reduce the strain on network and IT personnel.

Specifications

Management features
Multicast supportYes
Switch layerL2/L3
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Network
IPv6 multicast entries256
IPv4 multicast entries2000
IGMP entries4059
Networking standardsIEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ag,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3ah,IEEE 802.3an,IEEE 802.3aq,IEEE 802.3at,IEEE 802.3ba,IEEE 802.3bm,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Full duplexYes
Number of VLANs4059
VLAN supportYes
Port mirroringYes
IP routingYes
Ethernet LAN data rates10,100,480,800,1000,1200,2500,3000,5000,6000,10000,12000,16000,25000,40000,50000,100000 Mbit/s
Auto-negotiationYes
Policy-based routingYes
Virtual LAN features
Number of VLANs4059
VLAN supportYes
Data transmission
Multicast MAC address table16000 entries
Number of VLANs4059
Jumbo frames9600
MAC address table240000 entries
Switching capacity4000 Gbit/s
Store-and-forwardYes
Latency (1 Gbps)4 µs
Jumbo frames supportYes
Performance
Auto-negotiationYes
Memory typeDDR4-SDRAM
Internal memory16738 MB
Flash memory128000 MB
Built-in processorYes
FanlessNo
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
USB 2.0 ports quantity1
QSFP28 ports quantity48
SFP28 ports quantity4
Security
IGMP entries4059
Multicast features
Multicast MAC address table16000 entries
Multicast supportYes
IPv6 multicast entries256
IPv4 multicast entries2000
Design
Product colourViolet
CertificationRoHS, CE, FCC
Number of fans6 fan(s)
Power
Power consumption (max)750 W
Power supply includedNo
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)10 - 95%
Heat dissipation1600 BTU/h
Weight & dimensions
Width440 mm
Depth532 mm
Height430 mm
Weight7.42 kg
Packaging data
Quick start guideYes
ManualYes
Other features
Ethernet LAN data rates10,100,480,800,1000,1200,2500,3000,5000,6000,10000,12000,16000,25000,40000,50000,100000 Mbit/s
Packaging content
Quick start guideYes
ManualYes

No additional files, specification sheets, guides or documentation found for product.
