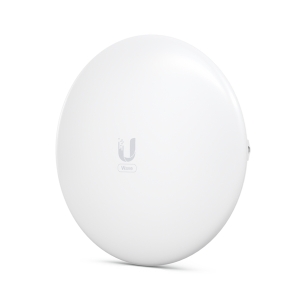

Ubiquiti Ubiquiti UISP Wave Nano Network transmitter White 10, 100, 1000 Mbit/s, 60 GHz PtMP station, 5km max

IMG 1 of 1
Our Price:
$732.00
or quickly purchase this product
Backorder
Part Number:
534379
(?) Brand:
Ubiquiti
Manuf No:
WAVE-NANO
WAVENANO
Shipping Weight:
2.56 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
WAVE-NANO, WAVENANO, WaveNano, Wave-Nano, NHUWAVENANO, NHU-WAVE-NANO, 0810010078940

Ubiquiti UISP Wave Nano Network transmitter White 10, 100, 1000 Mbit/s

Manufacturer: Ubiquiti
Category: Networking
Sub-Category: Network Extenders
SKU: WAVE-NANO
EAN: 0810010078940 0810010078988

Description

60 GHz PtMP station powered by Wave Technology. Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.

Specifications

Performance
International Protection (IP) codeIPX6
Ethernet LAN data rates10,100,1000 Mbit/s
TypeNetwork transmitter
Maximum transfer distance5000 m
Power over Ethernet (PoE)Yes
Data transfer rate2000 Mbit/s
ChipsetDual ARM® Cortex®-A53 cores at 1 GHz
Mobile operating systems supportedAndroid, iOS
Technical details
Mounting typePole
International Protection (IP) codeIPX6
Reset buttonYes
Ethernet LAN data rates10,100,1000 Mbit/s
TypeNetwork transmitter
Maximum transfer distance5000 m
Power over Ethernet (PoE)Yes
Data transfer rate2000 Mbit/s
ChipsetDual ARM® Cortex®-A53 cores at 1 GHz
LED indicatorsYes
Antenna gain level (max)41 dBi
Sustainability complianceYes
Sustainability certificatesCE
Antenna
Antenna gain level (max)41 dBi
Network
Web-based managementYes
Cabling technology10/100/1000Base-T(X)
Wi-FiYes
Wi-Fi standardsWi-Fi 6 (802.11ax)
Security algorithmsAES, WPA2-PSK
Wi-Fi bandSingle-band (60 GHz)
Modulation8PSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, QPSK
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Design
Housing materialAluminium, Plastic
Mounting typePole
Reset buttonYes
CertificationFCC, IC,
LED indicatorsYes
Product colourWhite
Rack mountingNo
Quantity per pack1 pc(s)
Power
Power consumption (transmitter) (max)18 W
Power over Ethernet (PoE)Yes
Operational conditions
Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width256.5 mm
Depth113.5 mm
Height256.5 mm
Weight932 g
Colour
Product colourWhite
Certificates
CertificationFCC, IC,
Memory
Internal memory512 MB

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
