All stock codes associated to this product
RASN4BKNNMTG, R-ASN4-BKNNMT-G, CFDASSASSINIV, CFD-ASSASSIN-IV, 6933412728092
| Performance |
|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Type | Air cooler |
| Fan diameter | 14 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Maximum airflow | 79.1 cfm |
| Maximum air pressure | 2.44 mmH2O |
| Number of heat pipes | 7 |
| Number of fans | 2 fan(s) |
| Heat pipes diameter | 6 mm |
| Quantity per pack | 1 pc(s) |
| Fan noise level (min) | 22.6 dB |
| Fan noise level (max) | 29.3 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1700 RPM |
| Design |
|---|
| Fan connector | 4-pin |
| Number of heat pipes | 7 |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Ports & interfaces |
|---|
| Fan connector | 4-pin |
| Power |
|---|
| Fan power consumption | 2.88 W |
| Fan voltage | 12 V |
| Fan current | 0.1 A |
| Weight & dimensions |
|---|
| Width | 144 mm |
| Depth | 147 mm |
| Height | 164 mm |
| Weight | 1.57 kg |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Heat pipes diameter | 6 mm |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
| Technical details |
|---|
| Fan connector | 4-pin |
| Packaging data |
|---|
| Package type | Box |
| Packaging content |
|---|
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
| Adapter frame included | Yes |

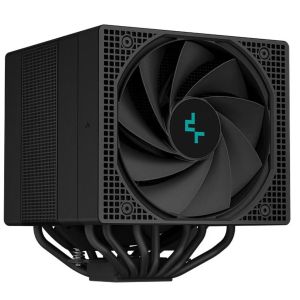

The silent heat killer returns with a new aesthetic and maximum cooling capacity. The ASSASSIN IV provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans.
BEAUTY IN SIMPLICITY The elegant design of the ASSASSIN IV is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
IN SILENT OR EXTREME MODE, THE ASSASSIN IV REIGNS SUPREME With a simple slide of a switch, the ASSASSIN IV can morph from a whisper-quiet cooler when low noise is of the utmost importance to an unrestricted cooling powerhouse when peak performance is all that matters.
BE COOL, BE CALM A key factor in the ASSASSIN IV's extremely silent operation is the use of three-phase, six-stage fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN IV comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
