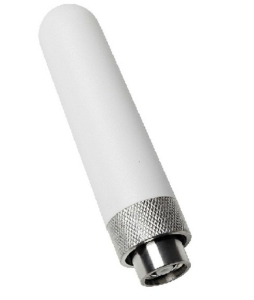

Cisco Aironet network antenna Omni-directional antenna RP-TNC 5 dBi, Aironet Short Dual-Band Omni Antenna, 3/5 dBi

IMG 1 of 1
Our Price:
$114.95
RRP:
$185.99
You Save:
$71.04
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
538032
(?) Brand:
Cisco Web Site
Manuf No:
AIR-ANT2535SDW-RS=
AIRANT2535SDWRS=
Shipping Weight:
0.2 KG (Includes product packaging)
Estimate Shipping
Date Added:
29/1/2024
Details Files Images & Video
All stock codes associated to this product
AIR-ANT2535SDW-RS=, 5334185, AIRANT2535SDWRS=, 0889728415194

Cisco Aironet network antenna Omni-directional antenna RP-TNC 5 dBi

Manufacturer: Cisco
Category: Networking
Sub-Category: Network Antennas
SKU: AIR-ANT2535SDW-RS=
EAN: 0889728415194

Description

This document describes the Cisco Aironet AIR-ANT2535SDW-R and AIR-ANT2535SDW-RS antennas and provides electrical specifications and mounting instructions. The antenna operates over the 2.4 GHz and 5 GHz Wi-Fi bands and is designed for indoor use with the Cisco Aironet 1600, 2600, 3600, 3700, and Cisco Catalyst 9120AXE series access points. The antenna utilizes an omnidirectional radiation pattern to achieve a broad coverage area. The AIR-ANT2535SDW-RS antenna includes circuitry to enable self-identification of the antenna by the Cisco access points. The antenna has a built-in EEPROM that can be read by the AP to automatically configure the antenna type and gain in the wireless controller.

Specifications

Performance
Antenna gain level (max)5 dBi
Frequency band2.4/5 GHz
Vertical beam width (5 GHz)35°
Vertical beam width (2.4 GHz)35°
Impedance50 Ω
Horizontal beam width (5 GHz)35°
Horizontal beam width (2.4 GHz)35°
Antenna gain (5 GHz)5 dBi
Antenna gain (2.4 GHz)3 dBi
Features
Antenna gain level (max)5 dBi
Connector genderMale
Frequency band2.4/5 GHz
Antenna typeOmni-directional antenna
Voltage Standing Wave Ratio (VSWR)2.0:1
Vertical beam width (5 GHz)35°
Vertical beam width (2.4 GHz)35°
PurposeIndoor
Impedance50 Ω
Horizontal beam width (5 GHz)35°
Horizontal beam width (2.4 GHz)35°
Antenna gain (5 GHz)5 dBi
Antenna gain (2.4 GHz)3 dBi
Antenna connector typeRP-TNC
Compatible productsAP1600, AP2600, AP3600, AP3700
Product colourWhite
Technical details
Harmonized System (HS) code85177100
Operational conditions
Operating temperature (T-T)-30 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Packaging content
Quantity per pack1 pc(s)
Logistics data
Quantity per pack1 pc(s)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Cisco) web site.
