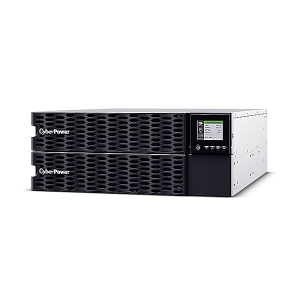

CyberPower OL10KERTHD uninterruptible power supply (UPS) Double-conversion

Power
Output frequency	50/60 Hz
Output power capacity	10 kVA
Output power	10000 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	2430 J
Maximum current	55 A
Emergency Power Off (EPO)	Yes
Power factor	1
Crest factor	3:1
Total Harmonic Distortion (THD) (linear load)	3%
Total Harmonic Distortion (THD) (non-linear load)	5%
ECO mode	Yes
Input frequency	50/60 Hz
Battery
Battery type	RBP0159
Battery technology	Lead-Calcium (Pb-Ca)
Battery recharge time	4 h
Typical backup time at half load	8.3 min
Typical backup time at full load	2.4 min
Hot-swap battery	Yes
Battery voltage	192 V
Performance
UPS topology	Double-conversion (Online)
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Pure sine
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	China
UPS topology	Double-conversion (Online)
Output power capacity	10 kVA
Output power	10000 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	2430 J
Maximum current	55 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Pure sine
Power factor	1
Crest factor	3:1
Audible alarm(s)	Yes
Total Harmonic Distortion (THD) (linear load)	3%
Total Harmonic Distortion (THD) (non-linear load)	5%
ECO mode	Yes
Input frequency	50/60 Hz
Heat dissipation	2044 BTU/h
Ports & interfaces
USB port	Yes
Serial interface	Yes
AC outlets quantity	10 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler, Terminal
Power plug	Terminal
USB 2.0 ports quantity	1
Serial ports quantity	1
Design
Country of origin	China
Rack capacity	4U
Form factor	Rackmount/Tower
Product colour	Black
Built-in fan	Yes
Housing material	Metal
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Storage temperature (T-T)	-5 - 45  Â°C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4500 m
Technical details
Output frequency	50/60 Hz
Sustainability compliance	Yes
Sustainability certificates	CE, EAC, RCM, RoHS
Harmonized System (HS) code	8504408690
Cooling
Built-in fan	Yes
Weight & dimensions
Width	433 mm
Depth	720 mm
Height	173 mm
Weight	71.2 kg
Package width	590 mm
Package depth	890 mm
Package height	488 mm
Package weight	92 kg
Packaging data
Package width	590 mm
Package depth	890 mm
Package height	488 mm
Package weight	92 kg
Logistics data
Harmonized System (HS) code	8504408690
Other features
Battery type	RBP0159

---

CyberPower OL10KERTHD guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output in a compact design. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and comes with additional ECO Mode to conserve power and save on energy costs.

The UPS can employ Extended Battery Modules (EBM) to prolong runtimes, and adopts patented Battery Management Technology to balance battery string voltage for optimal battery lifespan. This model also features tiltable color LCD panel that allows users to monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.
