| Data transmission |
|---|
| Maximum data transfer rate | 867 Mbit/s |
| Maximum transfer distance | 1000 m |
| Antenna |
|---|
| Antenna gain level (max) | 7 dBi |
| Antenna design | Internal |
| Antenna type | 2x2 |
| Wireless LAN features |
|---|
| Frequency band | 5 GHz |
| Antenna gain level (max) | 7 dBi |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Antenna type | 2x2 |
| Network |
|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN interface type | Gigabit Ethernet |
| Frequency band | 5 GHz |
| Ports & interfaces |
|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Cabling technology | 10/100/1000Base-T(X) |
| Management features |
|---|
| Web-based management | Yes |
| LED indicators | Power |
| Features |
|---|
| Product type | Network bridge |
| Reset button | Yes |
| International Protection (IP) code | IP65 |
| LED indicators | Power |
| Product colour | White |
| Mounting type | Pole |
| Power |
|---|
| Power source type | DC, PoE |
| DC input voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 24 V |
| Operational conditions |
|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Certificates |
|---|
| Certification | CE, FCC, RoHS |
| Technical details |
|---|
| Product colour | White |
| Weight & dimensions |
|---|
| Width | 224 mm |
| Depth | 79 mm |
| Height | 60 mm |

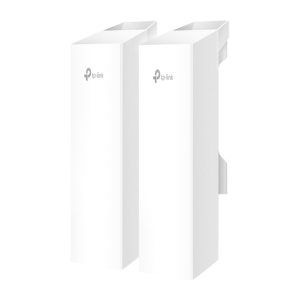

TP-Link Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point (EAP211-Bridge KIT)
• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
• Ideal for long-range wireless transmission up to 5 km (EAP215-Bridge KIT) & up to 1 km (EAP211-Bridge KIT).
• Auto-pairing and agile LEDs for efficient deployment.
• 3× Gigabit Ethernet ports for more high-speed IP camera connections.
• Supports Omada SDN for remote and centralized management.
• IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3
• Supports Passive PoE for flexible deployment (adapter included).
Warranty Period: 3-Year
