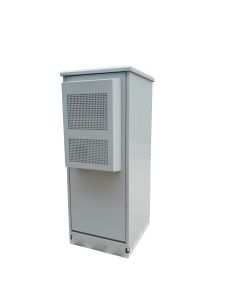

LDR Assembled 34U Outdoor Server Rack Cabinet (L615mm x W800mm x H1800mm), Solid Metal Door, Air Conditioner Included, IP20, Capacity 800kg

IMG 1 of 2
Our Price:
$6,528.35
RRP:
$6,889.21
You Save:
$360.86
or quickly purchase this product
Backorder
Part Number:
545757
(?) Brand:
LDR Web Site
Manuf No:
WB-OD-A
WBODA
Shipping Weight:
208 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

Please be aware that due to the large size of many products in this cateogry (Rack Cabinets in particular) additional freight may be required after completing your order. This covers various aspects of delivery - tailgates, if you do not have a forklift attract an additional charge. Or it can simply be that our freight system for extremely large products does not cope. Where possible we do absorb these additional fees but it varies order to order.
All stock codes associated to this product
WB-OD-A, WBODA, RCLDROD80034UA, RCLDR-OD800-34U-A

LDR Assembled 34U Outdoor Server Rack Cabinet RCLDR-OD800-34U-A



LDR 34U data communication cabinet of 615mm in width and 800mm in dimensional depth. Featuring front single solid metal door with handle lock, providing a sleek and professional look. Both the front and the back are closed with a lock. There is a possibility of closing the side panels after mounting optional inserts. Robust design, aesthetic appearance, and colour selection allow to put the cabinets not only in places designated for that purpose, but also in the office or at home.

Data Sheet: Click Here

FEATURES:
•4 Way Fan, 8-Port PDU & Two Shelves Included
•Side doors mounted on latches with a lock assembly option
•Ventilation:air conditioner1000W AC cooling on back door
•A frame with a load capacity of 800kg
•Protection class IP20
•Comply with ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.
•2-92 and ETSI standard
•Surface Finish:Degrease,acid pickling,rust prevention and parkerizing,pure water
•cleaning,static electricity powder coating
•Thickness:Mounting profile:2.0mm,others: 1.50mm
•Color:Body color:RAL7035 gray color

SPECIFICATIONS:
•Nominal Height:34U
•Outer Height: 1800mm
•Outer Width: 700mm
•Outer Depth: 800mm
•Internal Mounting Depth: 650mm
•Weight: 194kg
•Colour: Grey
•Maximum load capacity: 1000kg
•Protection class: IP65
•Front doors: Solid with a lock
•Back doors: Solid with a lock
•Side panels: Full steel dismounted on latches with a lock assembly option
•Carton: 1pc/box
•Shipping Dimensions: 1980mm x 760mm x 1045mm
•Shipping Weight: 212.5kg

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base
