CyberPower PDU20MVHVIEC24F power distribution unit (PDU) 24 AC

Design
Type	Single-phase
PDU types	Metered
Mounting	Vertical
Display	LED
Product colour	Black
Certification	UL60950
Rack capacity	0U
Housing material	Steel
Ports & interfaces
Power plug	C20 coupler
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Features
Cable length	3.05 m
Certification	UL60950
Surge protection	Yes
Ergonomics
Display	LED
Cable length	3.05 m
Power
Nominal input voltage	200 - 240 V
Maximum current	16 A
Nominal output voltage	200 - 240 V
Power protection features	Overload
AC input frequency	50 / 60 Hz
Circuit breaker	Yes
Weight & dimensions
Weight	2.63 kg
Weight (imperial)	3.18 kg (7 lbs)
Dimensions (W x D x H) (imperial)	44.5 x 57.1 x 1219.2 mm (1.75 x 2.25 x 48")
Width	44.5 mm
Depth	38.1 mm
Height	1219.2 mm
Package width	154 mm
Package depth	73 mm
Package height	1332 mm
Package weight	5.42 kg
Packaging data
Package width	154 mm
Package depth	73 mm
Package height	1332 mm
Package weight	5.42 kg
Packaging content
Packaging content	PDU20MVHVIEC24F, User's Manual, Product Registration Card, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit
Operational conditions
Operating temperature (T-T)	0 - 35  Â°C
Storage temperature (T-T)	-15 - 45  Â°C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Operating temperature (T-T)	32 - 95  Â°F
Technical details
Sustainability compliance	Yes
Warranty period	2 year(s)
Compliance certificates	RoHS

---

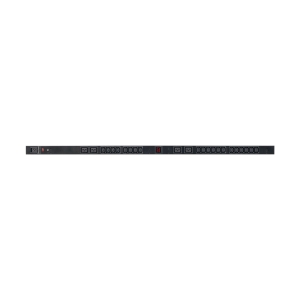

The CyberPower 24-outlet (24 Front) 0U vertical rack mount basic power distribution unit (PDU20MVHVIEC24F) provides 200/230V 20A output. It distributes power to 24 IEC-320 (4-C19 and 20-C13) receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
