TP-Link Omada DR3220v-4G wireless router Gigabit Ethernet

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
DSL features
DSL WAN	Yes
ADSL	Yes
ADSL2	Yes
ADSL2+	Yes
VDSL2	Yes
Mobile network
SIM card slot	No
3G/4G USB modem compatibility	Yes
Network
Network address translation (NAT)	Yes
Guest access	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
VPN support	IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Port triggering	Yes
Built-in FTP server	Yes
Static route	Yes
Policy-based routing	Yes
Load balancing system	Yes
Dynamic DNS (DDNS)	Yes
Protocols
DMZ support	Yes
Voice codecs	G.711a, G.711ulaw, G.722, G.726, G.729ab
Universal Plug and Play (UPnP)	Yes
DHCP server	Yes
DHCP client	Yes
Management features
Universal Plug and Play (UPnP)	Yes
Web-based management	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
MU-MIMO technology	Yes
Security
VPN support	IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN
URL filtering	Yes
System event log	Yes
Security algorithms	WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Network address translation (NAT)	Yes
Guest access	Yes
DMZ support	Yes
Access Control List (ACL)	Yes
Performance
Voice codecs	G.711a, G.711ulaw, G.722, G.726, G.729ab
Packaging content
Package type	Box
Number of products included	1 pc(s)
Cables included	LAN (RJ-45), Phone
AC adapter included	Yes
Antenna included	Yes
WAN connection
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-45
Wireless LAN features
WLAN data transfer rate (max)	2402 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ports & interfaces
USB port	Yes
RJ-11 ports quantity	3
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Design
Product type	Tabletop router
Wall mountable	Yes
LED indicators	DSL, LAN, USB, WLAN
Product colour	Black
Indication light	Yes
Antenna
Antenna design	External
Detachable antenna(s)	Yes
Antennas quantity	3
Antenna gain level (max)	4.5 dBi
Power
Power source type	AC
Output voltage	12 V
Output current	3.3 A
Operational conditions
Storage temperature (T-T)	-40 - 70  Â°C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40  Â°C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	226 mm
Height	35 mm
Depth	131 mm
Packaging data
Package type	Box
Cables included	LAN (RJ-45), Phone
AC adapter included	Yes
Number of products included	1 pc(s)
Antenna included	Yes

---

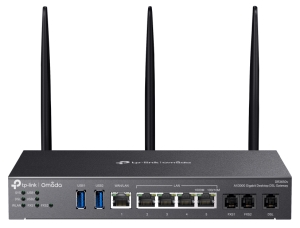

TP-Link DR3220v-4G Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway
• Support 4G+ Cat6 up to 300 Mbps*
• Super VDSL (VDSL2 35b): Supports 350Mbps DSL Access†
• VDSL2/ADSL2+/ADSL2/ADSL Compatibility
• 1× DSL Port, 2× FXS Ports, 1× Gigabit SFP/RJ45 Combo WAN/LAN Port, 4× Gigabit RJ45 LAN Ports, 1× USB 3.0 Port
• 2× Nano SIM for 4G/LTE Failover
• DPI Security Support
• IPSec / PPTP / L2TP / OpenVPN / WireGuard / GRE** / SSL VPN
• Load Balancing Across DSL, 4G, and Ethernet WAN for Optimised Connectivity
• Centralised Cloud Management
• Desktop / Rack-Mounting

Please note this DR model does NOT have Wi-Fi module.

Warranty Period: 5-Year
