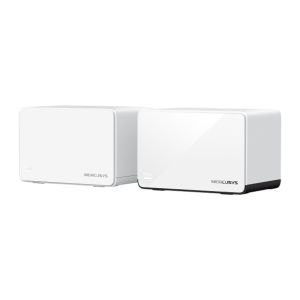

TP-LINK MERCUSYS HALO AX3000 MESH WI-FI 6 DUAL-BAND SYSTEM, 2.5G(1), GbE(2), 2-PACK, 2YR
- Dual Band WiFi 6 Speeds up to 3000 Mbps 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
- Seamless Roaming with One Unified Network Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.
- Whole Home Coverage Blanket up to 5,000 ft (460 m) with high-speed WiFi, eliminating WiFi dead zones at your home.
- Connect over 150 Devices Provide fast and stable connections over 150 devices.
- Easily Manage Your Home Network Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids online time and contents.
- 2.5 Gbps Multi-GigPort1 2.5 Gpbs and 2 Gigabit ports per Halo H85X unit for lightning-fast wired connections.
*Please note that the Halo H series and S series cannot work together.
- Wireless
- Wireless Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
- Signal Rate
2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz
- Reception Sensitivity
2.4GHz:
11g 6Mbps:-96.5dBm
11g 54Mbps:-78dBm
11AX HE20 MCS0:-96.5dBm
11AX HE20 MCS11:-65dBm
11AX HE40 MCS0:-93.5dBm
11AX HE40 MCS11:-63dBm
5GHz:
11a 6Mbps:-96dBm
11a 54Mbps:-78dBm
11ac VHT20 MCS8:-74.5dBm
11ac VHT40 MCS9:-70.5dBm
11ac VHT80 MCS9:-66.5dBm
11AX HE20 MCS11:-66dBm
11AX HE40 MCS11:-63dBm
11AX HE80 MCS11:-61dBm
- Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
- Wireless Security
WPA-PSK/WPA2-PSK/WPA3
- Mesh protocol
802.11k/v/r
- Software
- Operation Modes
Router, Access Point
- Quality of Service
WMM
- WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
- Management
Local Management, Remote Management, Multi-Managers
- DHCP
Server, Client
- Firewall Security
SPI Firewall
- Protocols
Supports IPv4 and IPv6
- Guest Network
2.4 GHz Guest Network,
5 GHz Guest Network
- Hardware
- Dimensions (W X D X H)
5 3.2 3.3in (128 81 83.7mm)
- Interfaces
Halo H85X: 1 2.5 Gbps Port + 2 1 Gbps Ports
Halo H80X: 3 1 GbpsPorts
(WAN/LAN auto-sensing)
- Button
Reset button
- Others
- Package Contents
2-pack
1 Halo H85XUnit + 1 Halo H80X Unit
1 RJ45 Ethernet Cable
2 Power Adapters
Quick Installation Guide
- Environment
Operating Temperature: 0C~40C (32F~104F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
