Please be aware that due to the large size of many products in this cateogry (Rack Cabinets in particular) additional freight may be required after completing your order. This covers various aspects of delivery - tailgates, if you do not have a forklift attract an additional charge. Or it can simply be that our freight system for extremely large products does not cope. Where possible we do absorb these additional fees but it varies order to order.
All stock codes associated to this product
CBNIP-27RU-66FS, CBNIP27RU66FS

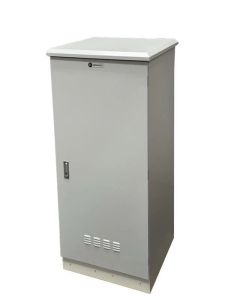

Serveredge IP55 Rated Free Standing cabinet / enclosures are designed for heavy duty outdoor applications to house sensitive data network equipment in the harshest environments. They are suitable for internal and external installations where equipment may be exposed to dust and water. This Serveredge cabinet is made up of heavy duty fully welded galvinised steel construction, with a 100mm height plinth. Vertical Mounting Rails in the cabinet are adjustable and accommodate all standard 19 inch rack equipment. The solid steel front door consists of filtered ventilation while the roof hood support an integrated 4 way fan unit that ensures generous airflow to keep your equipment operating safely.
The cabinet ships fully assembled and comes with a 2 year manufacturer's product warranty, nullified if installed in salty or corrosive enviroments.
PRODUCT FEATURE
Designed for Internal and external environments where equipmentmay be exposed to dust and water
Adjustable front &rear vertical rack mount rails
Water Proof Locks (front door)
IP55 Rating
4 Way Fan Unit
Rubber Glands in bottom panel for cable routing
Fully assembled for quick installation
Includes 100mm Height Plinth, with cable access panels front and rear.
PRODUCT SPECIFICATION
* Rack Height: 27RU
* IP Rating: IP55
* Shipping Dimensions (WDH/mm): 700 X 700 X 1500
* Shipping weight (kg): 85
* Unit Dimensions (WDH/mm): 600 X 600 X 1407
* Unit weight (kg): 78
* Colour: RAL 7035
* Weight Capacity - Stationary (kg): 1000
* Grounding lug: Front Door
PRODUCT INCLUDES
(1) Serveredge Free Standing IP55 Enclosure
(20) M6 screws
(20) M6 cage nuts
(20) M6 washers
(4) Rubber Glands for cable entry
(2) Keys
(1) 4 Way Fan Unit
