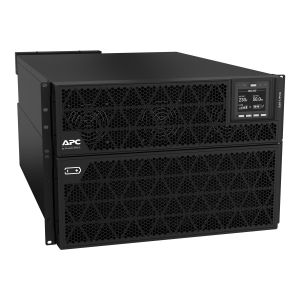

APC APC Smart-UPS On-Line, 15kVA/15kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit

IMG 1 of 6
Our Price:
$21,614.00
RRP:
$25,520.00
You Save:
$3,906.00
or quickly purchase this product
Backorder
Part Number:
557275
(?) Brand:
APC Web Site
Manuf No:
SRTG20KXLI
Shipping Weight:
157.2 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
SRTG20KXLI, UPASRTG20KXLI, UPA-SRTG20KXLI, 5266683, 731304411901
20kVA/20kW double-conversion on-line pure sine wave rack/tower UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/tower convertible (SRTGRK1 rail kit for power module and SRTGRK2 rail kit for battery pack sold separately)
1-Year Secure Network Management Card subscription included
Add up to 4 external battery packs (SRTG192XLBP2) for extended runtime

Specifications

Overview
Lead timeUsually in Stock
Main
Run time for load
W
Min-max: 2000-20000 W
3min 1s
Max. Capacity Used
100 %
Main Input Voltage230 V AC 1 phase
400 V AC 3 phases
Product or component typeUninterruptible power supply (UPS)
Other Input Voltage380...415 V
220...240 V
Main Output Voltage230 V AC 1 phase
400 V AC 3 phases
Other Output Voltage230 V
Rated power in W20000 W
Rated power in VA20000 VA
output connection type1 IEC 60320 C19
Output connector typeHard wire 5 wire (3P + N + E) for 1 zone(s)
Hard wire 3-wire (1P + N + E) for 1 zone(s)
Number of rack unit7U
Provided equipment1 x USB cable
1 x RJ45 cable
2 x rack mounting brackets
2 x stabilization/wall mounting feet
2 x installation manual
1 x C13-C14 power cord
1 x external battery pack
1 x battery cable
Range of productSmart-UPS On-Line
Complementary
Battery typeLead-acid external included
UPS connectivitySerial port
USB port
Pre-installed network management card 3
Mounting modeRack-mounted with kit sold separately
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery typeLead-acid battery
Battery voltage+/- 192 V
Extended runtime1
Number of battery filled slots0
Number of battery free slots0
Battery recharge time4 h
Number of battery replacement quantity2
Battery life35 year(s)
Battery charger power2160 W rated
General
Number of power module filled slots0
Number of power module free slots0
RedundantNo
UPS typeDouble conversion online
Physical
ColourBlack (RAL 9005)
Height306 mm
Width440 mm
Depth835 mm
Net weight142.5 kg
Mounting locationFront
Mounting preferenceLower
Mounting modeRack-mounted
Two post mountable0
USB compatibleYes
Mounting positionHorizontal
Input
Maximum input current87 A
Input harmonic distortionLess than 5 % for full load
Load power factorFrom 0.9 leading to 1 lagging
Switching current capacity125 A
Input voltage limits160...285 V full load
100...285 V half load
Number of input connectors1 hard wire 5 wire (3P + N + E)
1 hard wire 3-wire (1P + N + E)
Network frequency40...70 Hz auto-sensing
Output
Bypass typeInternal bypass (automatic and manual)
Crest factor3 : 1
Harmonic distortionLess than 2 %
Maximum configurable power in VA20000 VA
Maximum configurable power in W20000 W
Output overload operation60 seconds at 125% and 30 seconds at 150%
Wave typeSine wave
Efficiency94.5 %
Output frequency50/60 Hz +/- 4 Hz sync to mains
Additional informationConfigurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Configurable for 220 : 230 or 240 nominal output voltage
Conformance
Product certificationsCE
UKCA
TISI
StandardsEN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Acoustic level58 dBA
Heat dissipation3821 Btu/h
Operating altitude0...3000 m
Ambient air temperature for operation040 C
Ambient air temperature for storage-1545 C
Storage altitude015000 m
IP degree of protectionIP20
Relative humidity095 % non-condensing
Storage Relative Humidity095 % non-condensing
Communications & Management
Emergency power offYes
Free slots0
Preinstalled deviceNetwork management card 3 with environmental monitoring
AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rate600 J
Noise suppressionFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height53.5 cm
Package 1 Width79.0 cm
Package 1 Length59.0 cm
Package 1 Weight157.2 kg
Contractual warranty
Warranty (in months)36 UPS|24 Battery

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (APC) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
