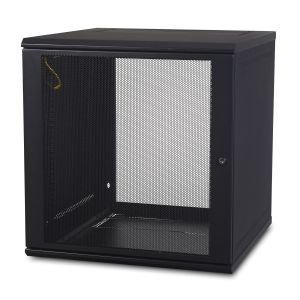

Efficient and secure edge computing solution when floor space is limited
12U, 600mm deep, Max. load 200lb
Reversible single-hinge door
Description
Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 12U Wall mount cabinet, 16.8 to 20.8 inches mounting depth, 200lb weight capacity, 19"" rack width, ships unassembled, 5 year APC warranty
Specifications
Overview| Presentation | Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top-mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 12U Wall mount cabinet, 16.8 to 20.8 inches mounting depth, 200lb weight capacity, 19" rack width, ships unassembled, 5 year APC warranty. |
|---|
| Lead time | Usually in Stock |
|---|
Main| Product or component type | Rack enclosure |
|---|
| Number of rack unit | 12U |
|---|
Physical| Height | 620 mm |
|---|
| Width | 599 mm |
|---|
| Depth | 599 mm |
|---|
| Net weight | 18.28 kg |
|---|
| Colour | Black |
|---|
| Mounting support | Wall |
|---|
| Mounting preference | No preference |
|---|
| Mounting mode | Not rack-mountable |
|---|
| Maximum mounting depth | 528.3 mm |
|---|
| Minimum mounting depth | 426.7 mm |
|---|
| Rack width | 19" |
|---|
| Permanent permissible load | 90.7 kg static |
|---|
Conformance| Standards | EIA-310E |
|---|
Packing Units| Unit Type of Package 1 | PCE |
|---|
| Number of Units in Package 1 | 1 |
|---|
| Package 1 Height | 29.3 cm |
|---|
| Package 1 Width | 68.3 cm |
|---|
| Package 1 Length | 68.8 cm |
|---|
| Package 1 Weight | 23.13 kg |
|---|
Contractual warranty| Warranty (in months) | 60 |
|---|
