Please be aware that due to the large size of many products in this cateogry (Rack Cabinets in particular) additional freight may be required after completing your order. This covers various aspects of delivery - tailgates, if you do not have a forklift attract an additional charge. Or it can simply be that our freight system for extremely large products does not cope. Where possible we do absorb these additional fees but it varies order to order.
All stock codes associated to this product
AR3105, UPAAR3105, UPA-AR3105
Supports a maximum static load of 3750 lbs and a dynamic load of 2250 lbs
Features adjustable mounting rails for various equipment depths
Includes lockable front and rear doors, as well as side panels
Designed with integrated high-density cable managers and improved cable access roofs
Description

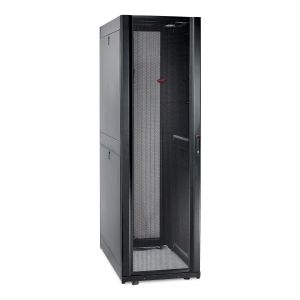

It is a 45U server rack enclosure. It is constructed with 14-gauge EIA mounting rails, 16-gauge front door, 16-gauge posts, and 18-gauge rear door and side panels. It comes with baying hardware, keyed-alike doors and side panels, leveling feet, pre-installed casters, and side panels. This enclosure is ideal for medium to high-density environments, offering efficient cable management and security.
Specifications
Overview| Lead time | Usually in Stock |
|---|
Main| Product or component type | Rack enclosure |
|---|
| Number of rack unit | 45U |
|---|
| Provided equipment | Baying hardware
Key(s)
Keyed-alike doors and side panels
Leveling feet
Mounting hardware
Pre-installed casters
Side panels |
|---|
Physical| Height | 2124 mm |
|---|
| Width | 600 mm |
|---|
| Depth | 1070 mm |
|---|
| Net weight | 137 kg |
|---|
| Colour | Black |
|---|
| Mounting preference | No preference |
|---|
| Mounting mode | Not rack-mountable |
|---|
| Maximum mounting depth | 914.9 mm |
|---|
| Minimum mounting depth | 190.5 mm |
|---|
| Rack width | 19" |
|---|
| Marking | 14 gauge EIA mounting rail
16 gauge front door
16 gauge post
18 gauge rear door
18 gauge roof
18 gauge side panels |
|---|
| Permanent permissible load | 1020.6 kg dynamic
1701.0 kg static |
|---|
Conformance| Standards | UL 2416
UL 60950-1
EIA-310E |
|---|
Packing Units| Unit Type of Package 1 | PCE |
|---|
| Number of Units in Package 1 | 1 |
|---|
| Package 1 Height | 224 cm |
|---|
| Package 1 Width | 115.6 cm |
|---|
| Package 1 Length | 74.6 cm |
|---|
| Package 1 Weight | 153.7 kg |
|---|
Contractual warranty| Warranty (in months) | 60 |
|---|
