All stock codes associated to this product
AR4340IX500, UPAAR4340IX500, UPA-AR4340IX500
Pre-configured solution ideal for indoor commercial environments
Packages power, cooling, security and monitoring into a single enclosure
Better protection and efficiency with intelligent eco-cooling
Built-in local and remote monitoring
Description

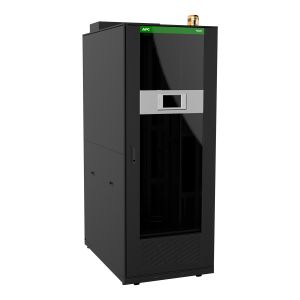

This micro data center is a 43U solution for indoor applications. Built-in features include emergency fan cooling, front and read LED lighting with door switch, dual input power panel, cable management, and intelligent controls with touchscreen display. Includes 6kVA Easy UPS with battery pack and basic power distribution. Power input is 230V / 50 Hz for 3.5kW split DX cooling with intelligent eco-modes. Sensors include temperature and humidity, spot water, and smoke for environmental sensing with alarm beacon. Monitoring is accessible with local display, phone, app, and web. Monitoring is accessible with local display, phone, app, and web.
Specifications
Overview| Lead time | Usually in Stock |
|---|
Main| Product or component type | Micro data center |
|---|
Complementary| Network frequency | 50 Hz |
|---|
Environment| Ambient air temperature for storage | -2040 C |
|---|
Physical| Height | 2080 mm |
|---|
| Width | 800 mm |
|---|
| Depth | 1200 mm |
|---|
| Number of rack unit | 43U |
|---|
| Net weight | 360 kg |
|---|
| Mounting mode | Rack-mounted |
|---|
| Minimum mounting depth | 191 mm |
|---|
| Mounting preference | No preference |
|---|
| Maximum mounting depth | 750 mm |
|---|
| Baying included | No |
|---|
| Permanent permissible load | 1200 kg static |
|---|
Conformance| Product certifications | IEC 60950
EMC |
|---|
Packing Units| Unit Type of Package 1 | PCE |
|---|
| Number of Units in Package 1 | 1 |
|---|
| Package 1 Height | 226 cm |
|---|
| Package 1 Width | 140 cm |
|---|
| Package 1 Length | 110 cm |
|---|
| Package 1 Weight | 420 kg |
|---|
