Please be aware that due to the large size of many products in this cateogry (Rack Cabinets in particular) additional freight may be required after completing your order. This covers various aspects of delivery - tailgates, if you do not have a forklift attract an additional charge. Or it can simply be that our freight system for extremely large products does not cope. Where possible we do absorb these additional fees but it varies order to order.
All stock codes associated to this product
ER6482, UPAER6482, UPA-ER6482
Easy to choose, install and accessorize
APC quality, reliability and solution compatibility
suitable for small spaces in edge environment
UL 2146 Certified Integrated electrical grounding
Standard 5 year factory warranty for peace of mind
Description

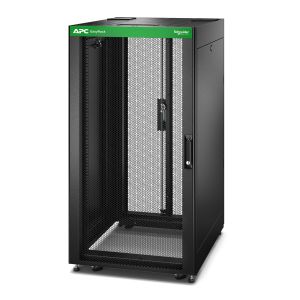

Easy Rack ER6482 is EIA-310 standard pre-assembled IT enclosure with essential features for fast and easy deployment in low to medium density edge computing applications. ER6422 is an ideal choice for remote and networking applications with its 24U height to easily fit underneath counter tops or even into corner of an office rooms. This rack is developed in compact 600mm width & shallow depth 800mm deep to minimize floor space. This rack comes with Roof, keys, levelling feet, casters, side panels, mounting hardware, PDU mounting brackets and without bottom. With UL 2146 certification, this enclosure features integrated electrical grounding, ensuring the roof, front and rear doors are grounded to the frame. This rack cabinet ships fully assembled for faster installation or choose to ship unassembled for storage or transit in tight spaces and prefer to assemble onsite. ER6482 has quick release doors with spring pin design so that front doors are easily removed and can be moved to the opposite side or interchanged with rear doors. Solid roof of this rack prevents items from falling inside. Roof & rear door allow some cabling to pass through with tie-off points on frame for secured cable management. Easy Racks are easy to choose, install and accessorize with cooling, cable management & PDUs, including recently launched feature-rich, Easy Rack PDU series.
Specifications
Overview| Lead time | Usually in Stock |
|---|
Main| Product or component type | Rack enclosure |
|---|
| Number of rack unit | 24U |
|---|
| Provided equipment | Baying hardware
Key(s)
Keyed-alike doors and side panels
Leveling feet
Mounting hardware
Pre-installed casters
Side panels |
|---|
Physical| Height | 1198 mm |
|---|
| Width | 600 mm |
|---|
| Depth | 800 mm |
|---|
| Net weight | 68.4 kg |
|---|
| Colour | Black |
|---|
| Maximum mounting depth | 641.4 mm |
|---|
| Minimum mounting depth | 190.5 mm |
|---|
| Rack width | 19" |
|---|
| Marking | 18 gauge front door
19 gauge rear door
16 gauge post
14 gauge EIA mounting rail |
|---|
| Permanent permissible load | 1199.8 kg static
599.6 kg |
|---|
Conformance| Standards | UL 2416
UL 60950-1
EIA-310E |
|---|
Packing Units| Unit Type of Package 1 | PCE |
|---|
| Number of Units in Package 1 | 1 |
|---|
| Package 1 Height | 133 cm |
|---|
| Package 1 Width | 65 cm |
|---|
| Package 1 Length | 85 cm |
|---|
| Package 1 Weight | 74 kg |
|---|
Contractual warranty| Warranty (in months) | 60 |
|---|
