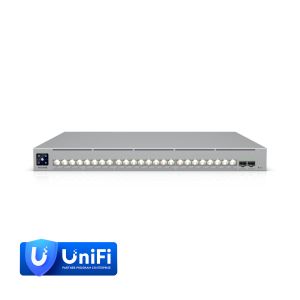

Ubiquiti ECS-24-PoE Switch, Ring Topology, Ensuring Redundancy Within The Switch Stack,*Require Deal Reg*

IMG 1 of 4
Our Price:
$6,930.00
RRP:
$7,549.30
You Save:
$619.30
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
557722
(?) Brand:
Ubiquiti
Manuf No:
ECS-24-PoE
ECS24PoE
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
ECS-24-PoE, ECS24PoE, NHUECS24POE, NHU-ECS-24-POE
Dimensions
442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
Port Layout
2.5 GbE RJ45
8 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ45
16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28
2 (25G/10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
100-240V AC Shared Mode: 1,050W with (2) 600W modules 100-240V AC Redundant Mode: 450W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules
Redundancy
(2) Hot-Swappable PSUs (4) Hot-Swappable Fans
Layer 3
Form Factor
Rack Mount (1U, Full-Depth)
Etherlighting
Switching Capacity
460 Gbps
Total Non-Blocking Throughput
230 Gbps
Forwarding Rate
342 Mpps
Supported VLANs
1,000
MAC Address Table Size
128,000
L3 Table Size
ARP Entries
128,000
IPv4 Routes
256,000
Packet Buffer Size
8 MB
Access Lists
IPv4
256
MAC
256
DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)
LACP Port Aggregation
STP & RSTP
QoS (DSCP)
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Virtual Network Override
PoE Ports
PoE+++
24
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W
Max. Power Consumption
150W (Excluding PoE Output) 2,400W (Including PoE Output)
Power Method
(2) Universal input, 100240V AC, 50/60 Hz, 50/60 Hz
Power Input Method
(2) AC input, Hot-swappable power modules
Power Supply
(2) Hot-swappable AC/DC 600W power modules
Supported Voltage Range
100240V AC
Management
Ethernet AR
Heat Dissipation
444 BTU/hr (Excluding PoE Output)
Weight
Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb)
Enclosure Material
SGCC steel
Supported Rack Depth
482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.639.4)
LCM Display
1.3" touchscreen
Fan Method
(4) hot-swappable fan modules
ESD Protection
Air: 30kV, contact: 30kV
Ambient Operating Temperature
-5 to 40 C (23 to 104 F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting
Ethernet
SFP28
LEDs
Ethernet
System
NDAA Compliant
Certifications
CE, FCC, IC, Anatel: 06181-25-08356
Application Requirements
UniFi Network
Version 9.0.114 and later
