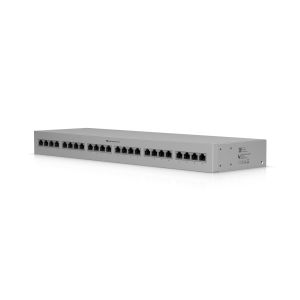

Ubiquiti Ethernet Surge Protection,Rack-mount Indoor Panel Supports Up To 10 GbE, PoE++, 20kA Surge Discharge/Port,24-port Integrated,1U Rack-mount

IMG 1 of 5
Our Price:
$1,027.50
or quickly purchase this product
Backorder
Part Number:
557733
(?) Brand:
Ubiquiti
Manuf No:
UACC-ETH-SP-Panel-24
UACCETHSPPanel24
Shipping Weight:
3.28 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
UACC-ETH-SP-Panel-24, UACCETHSPPanel24, NHUUACCETHSPPANEL24, NHU-UACC-ETH-SP-PANEL-24
Description:
Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.

Features:
24-port integrated
1U rack-mount design
Dimensions
442.4 x 134 x 43.7 mm (17.4 x 5.3 x 1.7")
Weight
2 kg (4.4 lb)
Enclosure Material
SGCC steel
Networking Interface
(48) RJ45 female connectors
DC Spark-Over Voltage
90V @ 100V/s
Max. Impulse Spark-Over Voltage
600V @ 1kV/s
Discharge Current
20kA
Insulation
Max. Resistance: 1G ohm @ 50V
Max. Capacitance
1.0 pF @ 1 MHz
Data Line Protection
Up to 10 Gbps
PoE Support
ESD/EMP Protection
Absorbing transient current with response to surge voltage from 100V/s to 1kV/s
Ambient Operating Temperature
-40 to +80 C (-40 to 176 F)
Ambient Operating Humidity
10 to 90% noncondensin

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.
