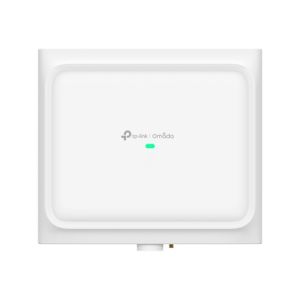

TP-Link EAP650 D30-Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point

IMG 1 of 5
Our Price:
$314.15
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
557767
(?) Brand:
TP-Link
Manuf No:
EAP650 D30-Outdoor
EAP650 D30Outdoor
Shipping Weight:
2.13 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
EAP650 D30-Outdoor, EAP650 D30Outdoor, NWTLEAP650D30OUTDOOR, NWTL-EAP650-D30-OUTDOOR
  • Superior Wi-Fi 6 Speeds:2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

  • Directional Ultra-Range Coverage:Equipped withbuilt-in high-gain directional antennas to deliver precise and extended coverage.*

  • Ideal forWarehouses andOutdoorScenes:Features an IP68 waterproof enclosure with -30C to +70C operating range.

  • 802.11k/v/r Seamless Roaming:Ensures uninterrupted connectivity for AGVs and handheld scanners.

  • Flexible Deployment:Supports 802.3at PoE and Omada Mesh technology.

  • Centralised Cloud Management:Control everything from a single interface anywhere via the Omada app or Web UI.


Omada AX3000
Indoor/OutdoorWi-Fi 6
Access Point

EAP650 D30-Outdoor

  • Wi-Fi 6 Speeds up to
    3.0 Gbps

  • Directional
    Antennas

  • Focused &Ultra-RangeCoverage

  • PoE+
    Support

  • Omada Seamless Roaming and Mesh

  • Centralised Management via
    App or Web

  • Automatic WLAN
    Optimisation

  • IP68 Weatherproof Enclosure

Designed for Warehouses

The EAP650 D30-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.

  • Durable Waterproof Enclosure

    Durable Waterproof
    Enclosure

  • Operating Temperature

    Operating Temperature
    of -30C to 70C

  • No Ingress of Dust

    No Ingress
    of Dust

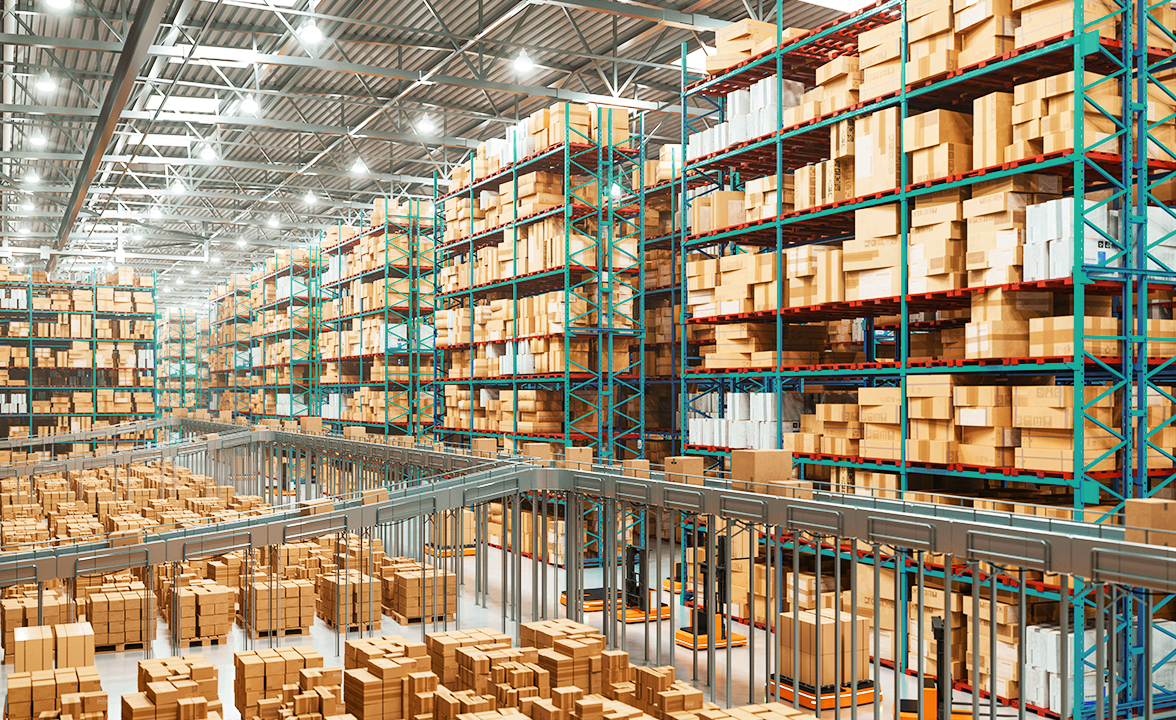

  • Warehouse Shelving Areas

    Warehouse Shelving Areas

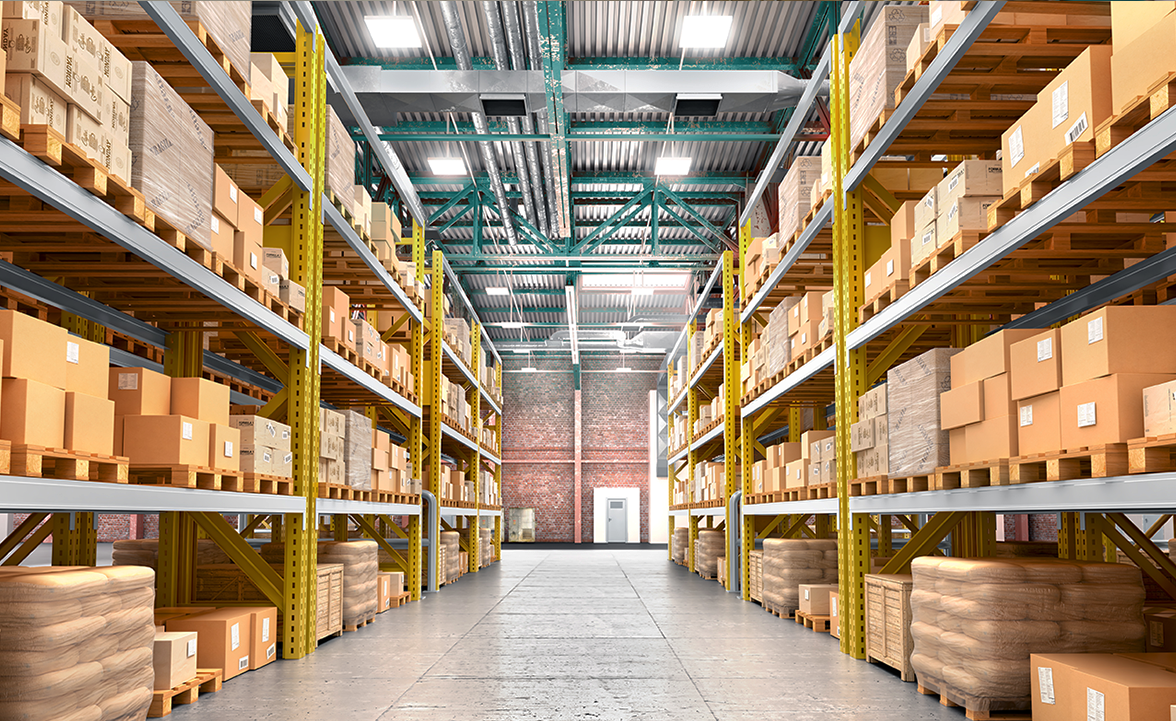

  • Storehouses

    Storehouses

Elevate Wi-Fi Experience for Shelf Areas with Directional Antennas

Equipped with 4 built-in dual-band directional antennas with high gain to ensure the optimal Wi-Fi experience ideal for precise and extended coverage.*

  • Recommended Installation Height

    13ft / 4m

  • Recommended Coverage Length

    262 ft / 80 m

Higher Installation

Longer Coverage

Less Disruption

Directional Antennas for
Ultra-Range Coverage in Outdoor Scenarios

  • 2.4 GHz up to

    1181ft/360m*

  • 5 GHz up to

    2953ft/900m*

*Based on field tests in an open, outdoor, and unobstructed environment. The number listed here is the maximum distance of one EAP650 D30-Outdoor which the client's signal strength is -75 dBm. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.

Stay Smooth with Seamless Roaming

Ensure users enjoy uninterrupted steaming when moving around by switching clients automatically to the access points with the optimal signals.

Seamless Roaming

Seamless Integration into Omada SDN

On-Premises Controllers

Or

Or

OmadaCloud-BasedController

Omada Hardware Controller

Omada Software Controller

Wi-Fi 6 Indoor/Outdoor AP

EAP650 D30-Outdoor

Omada PoE Switch

Omada VPN Gateway

Internet

Cloud Access

Web Browser

Omada App

HARDWARE FEATURES
Interface1 Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)
ButtonReset
Power Supply 802.3at PoE
48V Passive PoE
Max. Power Consumption EU: 12.5W (802.3at PoE or Passive PoE)
US: 14.7W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H )8.2 2.3 9.1 in (207.5 58 230 mm)
AntennaBuilt-in Directional Antennas:
2.4 GHz: 2 12 dBi
5 GHz: 2 15 dBi
Beamwidth: 30 Horizontal; 30 Vertical
BluetoothYes
Weatherproof EnclosureIP68
MountingWall/Pole/Ceiling Mount
WIRELESS FEATURES
Concurrent Clients250+**
Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax
Frequency2.4 GHz, 5 GHz
Signal Rate574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)
Wireless Functions 1024-QAM
DL/UL OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 on each band)
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Guest Network
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
2 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO
Omada Mesh
Seamless Roaming(802.11k/v/r)
Band Steering
Load Balance
Airtime Fairness
Beamforming
RADIUS Accounting
MAC Authentication
Reboot Schedule
Wireless Schedule
Wireless Statistics
Static IP/Dynamic IP
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power EU: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);
US: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)
Management Features
Omada AppYes
Restore & BackupYes
NTPYes
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogYes
SSHYes
Web-based ManagementYes
Multi-site ManagementYes
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller
OTHERS
CertificationCE, FCC, RoHS
Package Content Access Point EAP650 D30-Outdoor
Mounting Kits
Installation Guide
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment Operating Temperature: -3070 (-22158 )
Storage Temperature: -4070 (-40158 )
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.
