All stock codes associated to this product
U7-Pro-XG-B, U7ProXGB, NHUU7PROXGB, NHU-U7-PRO-XG-B

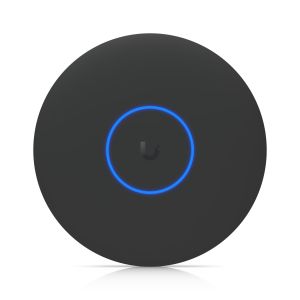

U7 Pro XG (Black)
Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.
6-Spatial Stream WiFi 7 with 6 GHz Support
Up to 140 m (1,500 ft) Coverage
300+ Connected Devices
6 GHz Radio
10/5/2.5/1 GbE Uplink
Power Method: PoE+
The Birth of the U7 Pro XG
From the inside out, every mechanical and electronic detail has been meticulously shaped to strike the perfect balance between aesthetics and performance. Our new thermal architecture allowed us to create our sleekest form factor ever, all while preserving the timeless look that UniFi fans know and love.
Performance That Fit Your Needs
Ideal for most network environments, delivering robust performance with the latest WiFi 7 capabilities, including MLO, and 3+ Gbps client performance.
Supporting 10G PoE Switching
U7 Pro XG is equipped with 10 GbE ports to expose the performance potential of Wi-Fi 7; as clients become more capable, it is not uncommon to see a single client capable of 3+ Gbps throughput.
Continuous Innovation
Of course, hardware is only as powerful as the software that drives it. By choosing UniFi, youre tapping into a long-term ecosystem of innovation. UniFi Network 9 advancements are set to roll out throughout the year, bringing next-level networking features, intelligence, and analytics to every UniFi deployment.
A Palette for Every Environment
We know that a devices appearance matters just as much as its performanceespecially in environments where aesthetics are a priority. Thats why, for the first time, the U7 Pro XG comes in dual colour options, white and a new black variant. These new variants can blend seamlessly into any interior design, offering a choice that complements your deployment without compromising on power or function.
The Future of UniFi
If youre looking to modernise your network with top-tier performance and a timeless yet modern look, the U7 Pro XG is here to usher you into the new era of WiFi: low latency, high speed, and a true wired experience without the cables.
Overview
Dimensions
206 x 32.5 mm (8.1 x 1.3")
Coverage Area
140 m (1,500 ft)
Mounting
Ceiling, Wall (Lite Mount Included)
Performance
MIMO
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain
6 GHz: 6 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
Max. TX Power
6 GHz: 24 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Supported Data Rates
802.11be (WiFi 7):
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6):
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5):
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n:
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
802.11v BSS Transition Management
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes
Private Pre-Shared Key (PPSK)
Yes
Client Device Isolation
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Hardware
Max. Power Consumption
22W
Supported Voltage Range
42.557V DC
Networking Interface
(1) 10 GbE RJ45 port
Enclosure Material
UV-stabilised polycarbonate, aluminium alloy
Mount Material
Stainless steel (SUS304), galvanised steel (SGCC)
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 40 C (-22 to 104 F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 9.1.120 and later (U7 Pro XG - Black)
