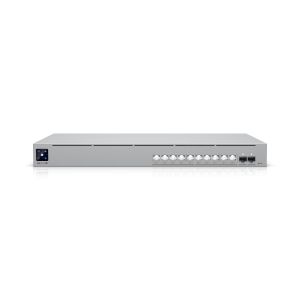

Ubiquiti Pro XG 10 PoE, 1U,Professional-grade 10-port, Layer 3 Etherlighting PoE+++ Switch,(10) 10 GbE and (2) 10G SFP+ Ports,

IMG 1 of 6
Our Price:
$1,866.50
or quickly purchase this product
Backorder
Part Number:
557937
(?) Brand:
Ubiquiti
Manuf No:
USW-Pro-XG-10-PoE
USWProXG10PoE
Shipping Weight:
6 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
USW-Pro-XG-10-PoE, USWProXG10PoE, NHUUSWPROXG10POE, NHU-USW-PRO-XG-10-POE

U, professional-grade 10-port, Layer 3 Etherlighting PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.

Features:
Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(10) 10 GbE PoE+++ ports
(2) 10G SFP+ ports
DC power backup ready**
400W total PoE availability
*Pair with UniFi Enterprise Patch Cable for optimal brightness.
**Requires UniFi RPS.







Dimensions
442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Port Layout
10 GbE RJ45
10 (All PoE+++) (10G/5G/2.5G/1G/100M)
10G SFP+
2 (10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
400W
Redundancy
DC Power Backup
Layer 3
Form Factor
Rack mount (1U)
Etherlighting
Switching Capacity
240 Gbps
Total Non-Blocking Throughput
120 Gbps
Forwarding Rate
179 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
L3 Table Size
ARP Entries
12,000
IPv4 Routes
12,000
Packet Buffer Size
2 MB
Access Lists
IPv4
128
MAC
128
DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)
LACP Port Aggregation
STP & RSTP
QoS (DSCP)
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Virtual Network Override
PoE Ports
PoE+++
10
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W
Max. Power Consumption
65W (Excluding PoE output) 520W (Including PoE output)
Power Method
(1) Universal input, 100240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 550W
Supported Voltage Range
100240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 4.6 kg (10.14 lb) With mounting brackets: 4.7 kg (10.36 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2"")
LCM Display
1.3" touchscreen
ESD Protection
Air: 30kV, contact: 30kV
Ambient Operating Temperature
-5 to 40 C (23 to 104 F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting
Ethernet
SFP+
LEDs
RPS
System
NDAA Compliant
Certifications
CE, FCC, IC, Anatel: 05660-25-08356
Application Requirements
UniFi Network
Version 9.1.120 and later

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
