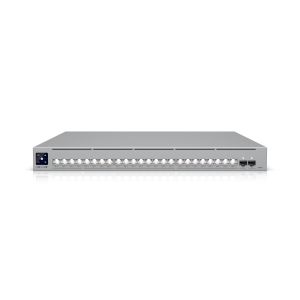

Ubiquiti Pro XG 24 PoE, Professional-grade, 24-port Layer 3 Etherlighting, PoE+++ Switch,(16) 10 GbE, (8) 2.5 GbE, (2) 25G SFP28 Port

IMG 1 of 7
Our Price:
$4,623.70
or quickly purchase this product
Backorder
Part Number:
557939
(?) Brand:
Ubiquiti
Manuf No:
USW-Pro-XG-24-PoE
USWProXG24PoE
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
USW-Pro-XG-24-PoE, USWProXG24PoE, NHUUSWPROXG24POE, NHU-USW-PRO-XG-24-POE

Description:
Professional-grade, 24-port Layer 3 Etherlighting PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.

Features:
Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(16) 10 GbE, (8) 2.5 GbE ports, all PoE+++ (90W capable)
(2) 25G SFP28 ports
DC power backup ready**
720W total PoE availability
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires UniFi RPS.





Dimensions
442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
Port Layout
2.5 GbE RJ45
8 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ45
16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28
2 (25G/10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
720W
Redundancy
DC Power Backup
Layer 3
Form Factor
Rack mount (1U)
Etherlighting
Switching Capacity
460 Gbps
Total Non-Blocking Throughput
230 Gbps
Forwarding Rate
342 Mpps
Supported VLANs
1,000
MAC Address Table Size
128,000
L3 Table Size
ARP Entries
128,000
IPv4 Routes
256,000
Packet Buffer Size
8 MB
Access Lists
IPv4
256
MAC
256
DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)
LACP Port Aggregation
STP & RSTP
QoS (DSCP)
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Virtual Network Override
PoE Ports
PoE+++
24
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W
Max. Power Consumption
150W (Excluding PoE Output) 870W (Including PoE Output)
Power Method
(1) Universal input, 100240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 870W
Supported Voltage Range
100240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 7.9 kg (17.4 lb) With mounting brackets: 8 kg (17.6 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42)
LCM Display
1.3" touchscreen
ESD Protection
Air: 30kV, contact: 20kV
Ambient Operating Temperature
-5 to 40 C (23 to 104 F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting
Ethernet
SFP28
LEDs
RPS
NDAA Compliant
Certifications
CE, FCC, IC, Anatel: 04322-25-08356
Application Requirements
UniFi Network
Version 9.1.120 and later
