HOME / Back -> Networking -> Switches -> Ubiquiti

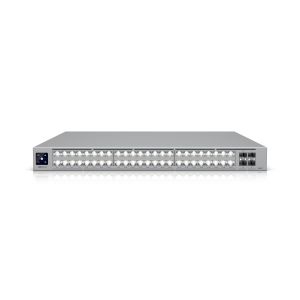

Ubiquiti Pro XG 48, Professional-grade, 48-port Layer 3 Etherlighting Switch, (32) 10 GbE, (16) 2.5 GbE, (4) 25G SFP28 Ports, DC Power Backup Ready

IMG 1 of 7
Our Price:
$5,019.15
or quickly purchase this product
Backorder
Part Number:
557940
(?) Brand:
Ubiquiti
Manuf No:
USW-Pro-XG-48
USWProXG48
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
USW-Pro-XG-48, USWProXG48, NHUUSWPROXG48, NHU-USW-PRO-XG-48

Professional-grade, 48-port Layer 3 Etherlighting switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.

Features:
Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(32) 10 GbE, (16) 2.5 GbE ports
(4) 25G SFP28 ports
DC power backup ready**





Dimensions
442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
Port Layout
2.5 GbE RJ45
16 (2.5G/1G/100M/10M)
10 GbE RJ45
32 (10G/5G/2.5G/1G/100M/10M)
25G SFP28
4 (25G/10G/1G)
Redundancy
DC Power Backup
Layer 3
Form Factor
Rack mount (1U)
Etherlighting
Switching Capacity
920 Gbps
Total Non-Blocking Throughput
460 Gbps
Forwarding Rate
684 Mpps
Supported VLANs
1,000
MAC Address Table Size
128,000
L3 Table Size
ARP Entries
128,000
IPv4 Routes
256,000
Packet Buffer Size
8 MB
Access Lists
IPv4
256
MAC
256
DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)
LACP Port Aggregation
STP & RSTP
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Virtual Network Override
Max. Power Consumption
250W
Power Method
(1) Universal input, 100240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 300W
Supported Voltage Range
100240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 7.5 kg (16.5 lb) With mounting brackets: 7.6 kg (16.8 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42)
LCM Display
1.3" touchscreen
ESD Protection
Air: 30kV, contact: 14kV
Ambient Operating Temperature
-5 to 40 C (23 to 104 F)
Ambient Operating Humidity
10 to 90% noncondensing
LEDs
RPS
NDAA Compliant
Certifications
CE, FCC, IC, Anatel: 06464-25-08356
Application Requirements
UniFi Network
Version 9.0.114 and later

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
