HOME / Back -> Networking -> Switches -> Ubiquiti

Ubiquiti WAN Switch, 10G SFP+ WAN Switch Linking Two Shadow Mode High Availability UniFi Gateways To Single ISP

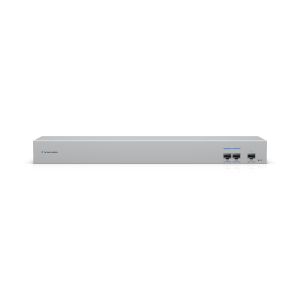

IMG 1 of 6
Our Price:
$692.40
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
557942
(?) Brand:
Ubiquiti
Manuf No:
USW-WAN
USWWAN
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
USW-WAN, USWWAN, NHUUSWWAN, NHU-USW-WAN

10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.

Features:
Combine with Shadow Mode High Availability to ensure uninterrupted connectivity
(1) 10G SFP+ ISP uplink and (2) 10G SFP+ downlink ports
(2) AC inputs for power redundancy
(1) GbE port for management with UniFi Network
*Use an additional USW-WAN switch for ISP failover deployments.





Dimensions
442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7")
Port Layout
1 GbE RJ45
1 (1G/100M/10M)
10G SFP+
3 (10G/1G)
Redundancy
(2) AC inputs
Form Factor
Rack mount (1U)
Switching Capacity
20 Gbps
Total Non-Blocking Throughput
10 Gbps
Forwarding Rate
15 Mpps
Max. Power Consumption
13W
Power Method
(2) Universal input, 100240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
(2) AC/DC, internal, 36W
Supported Voltage Range
100240V AC
Management
Ethernet
Weight
Without mounting brackets: 2.2 kg (4.85 lb) With mounting brackets: 2.3 kg (5.1 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
ESD Protection
Air: 16kV, contact: 22kV
Ambient Operating Temperature
-5 to 40 C (23 to 104 F)
Ambient Operating Humidity
10 to 90% noncondensing
LEDs
Ethernet
SFP+
System
Certifications
CE, FCC, IC, Anatel: 03715-25-08356
NDAA Compliant
Application Requirements
UniFi Network
Version 9.1.119 and later

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
