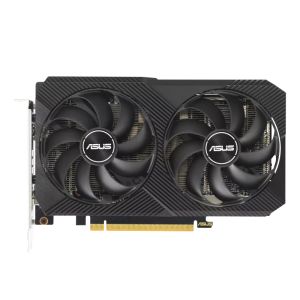

DUAL-RX6500XT-O4G-V2 | ASUS Dual Radeonâ„¢ RX 6500 XT V2 OC Edition 4GB GDDR6 with

Radeon RX 6500 XT

PCI Express 4.0

OpenGL4.6

4GB GDDR6

OC mode: up to 2820 MHz(Boost Clock)/ up to 2670 MHz(Game Clock)
Gaming mode: up to 2820 MHz(Boost Clock)/ up to 2650 MHz(Game Clock)

1024

18 Gbps

64-bit

Digital Max Resolution 7680 x 4320

Yes x 1 (Native HDMI 2.1)
Yes x 1 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

2

No

1 x Speedsetup Manual

ASUS GPU Tweak III & Drivers: please download all software from the support site.

201 x 128 x 40 mm
7.9 x 5.03 x 1.57 inch

500W

1 x 6-pin

2 Slot

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the Choose By Wattage feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Crossfire Support for DirecX 12 and Vulkan
* Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
