Ubiquiti LTE Pro, Seamless Internet Failover For UniFi Gateways, PoE+, Passive PoE 48V,128 MB DDR2, Bring Your Own SIM for LTE data

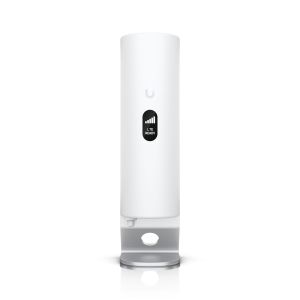

IMG 1 of 4
Our Price:
$730.60
or quickly purchase this product
Backorder
Part Number:
559782
(?) Brand:
Ubiquiti
Manuf No:
U-LTE-Backup Pro
ULTEBackup Pro
Shipping Weight:
0.68 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
U-LTE-Backup, Pro, ULTEBackup, Pro, NHUULTEBACKUPPRO, NHU-U-LTE-BACKUP-PRO, ULTEBackupPro, 810010073549

LTE Backup Pro

Seamless internet failover for UniFi gateways. Bring your own nano-SIM for LTE data.

2x2 LTE Radio
PoE Passthrough with PoE+ In
External Antenna Support
Flexible Mounting
Requires a UniFi Gateway

PoE+ input required for PoE passthrough.

Seamless Internet and Failover

Seamless internet connectivity and failover for UniFi sites. Featuring the magically simple LTE Backup Pro.

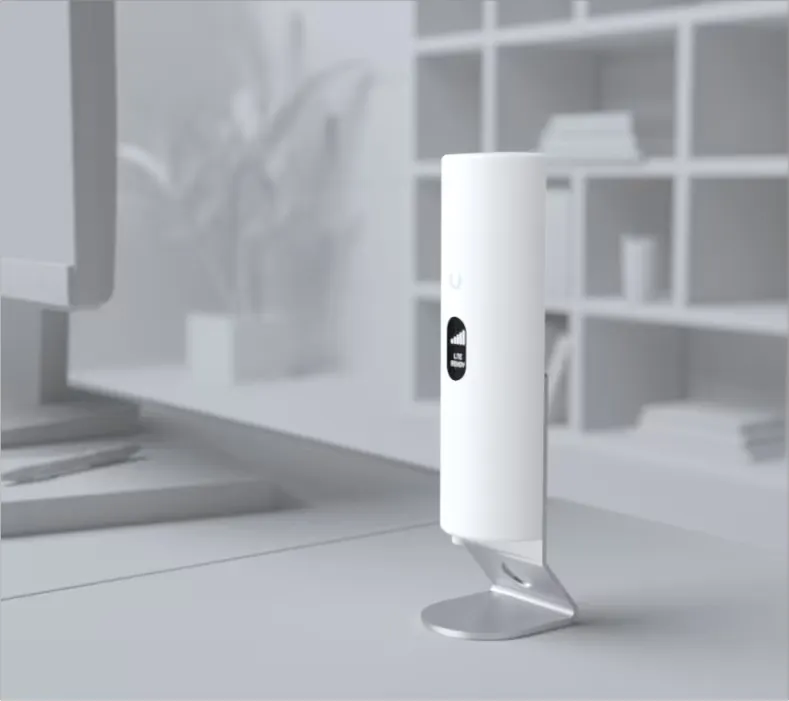

Network Redundancy
Network Redundancy

The UniFi LTE Backup Pro features a 1.54" LCM display and a secondary Gigabit Ethernet port for bridging and PoE passthrough.

Network Redundancy
Network Redundancy

The UniFi LTE Backup Pro seamlessly integrates with the UniFi Dream Machine and Security Gateway to deploy an LTE WAN failover network in the event of a lost internet connection.

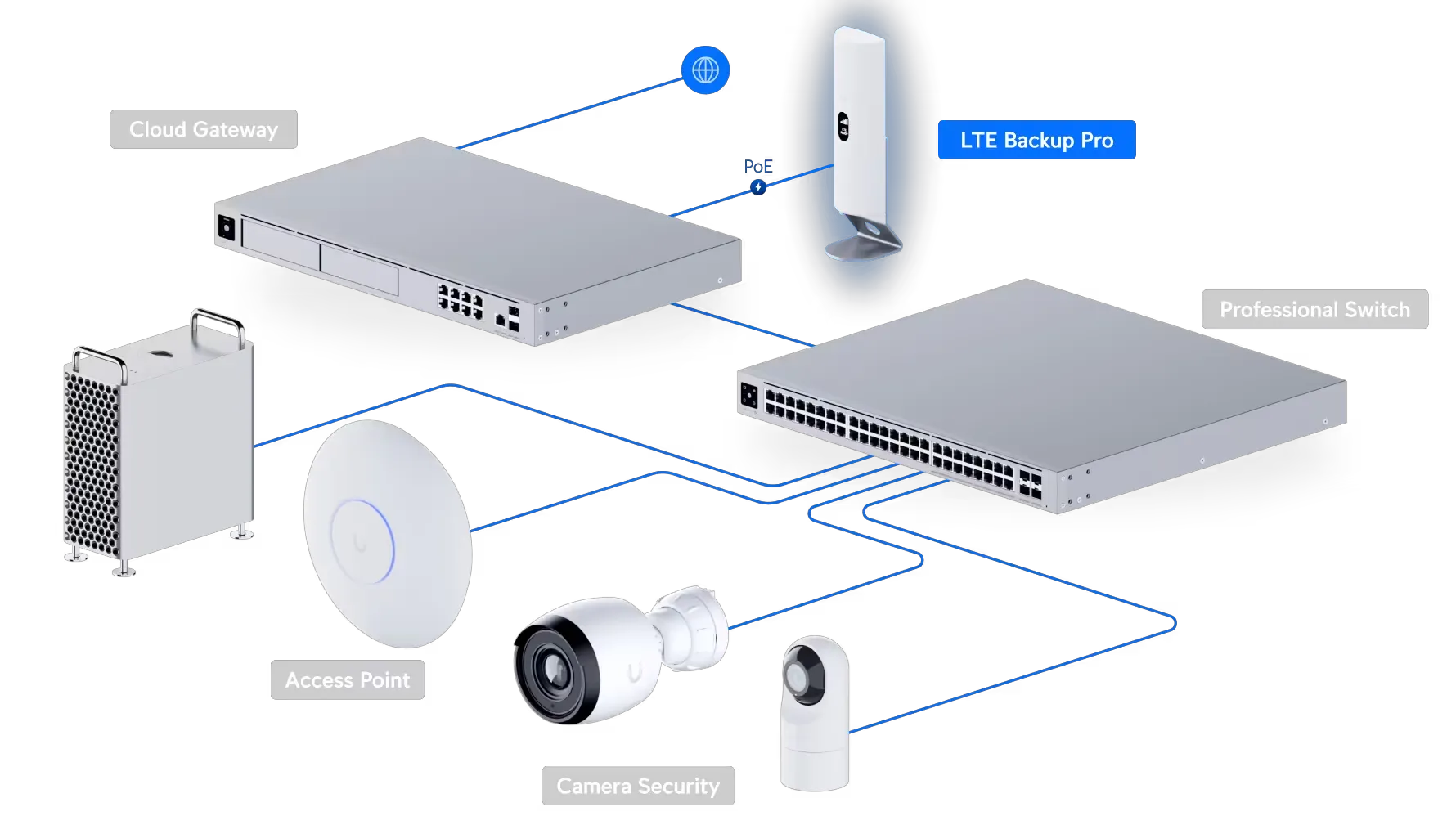

Deployment

Technical Specs
Mechanical
Dimensions
66 x 202 x 32 mm (2.6 x 8 x 1.3")
Weight
Without stand: 223 g (7.9 oz)
With stand: 336 g (11.9 oz)
Enclosure material
Polycarbonate
Mount material
Stand: aluminium
Wall mount: polycarbonate
Hardware
Processor
74 Kc MIPS processor at 775 MHz
Memory
128 MB DDR2
Networking interface
(2) GbE RJ45 ports
LTE Category 4 radio
Management interface
Ethernet
PoE interface
(1) PoE in (PoE output not used)
(1) PoE passthrough output (Requires a PoE+ switch)
SIM
nano-SIM*

*Data-only.

LTE bands
B1 (2100), B3 (1800), B7 (2600), B8 (900), B28 (700)
*Australian 4G Frequency Bands Supported.
Power supply
UniFi PoE switch
48V, 0.5A PoE adapter
Supported voltage range
4457V DC
Max. power consumption
Excluding PoE passthrough output: 8.5W
Max. PoE passthrough wattage per port
15.4W*

*Requires a PoE+ switch

MIMO
2 x 2 LTE Category 4
Throughput speeds
Download 150 Mbps / Upload 50 Mbps

*Speed and coverage depend on location and network performance.

Antenna
(2) Internal LTE antennas
(1) Female RP-SMA connector for an external antenna (optional)

*The maximum antenna gain must not exceed 6 dBi to comply with regulation.

External antenna port
Female RP-SMA connector

*Please use male RP-SMA antennas to match the U LTE Backup Pro.

LCM display
1.54" screen
Button
Factory reset
Mounting
Wall mount or foot stand (Included)
Ambient operating temperature
-10 to 60 C (-14 to 140 F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
FCC, IC
NDAA Compliant
Yes
Software
Management application
UniFi Network: Version 7.2.85 and later
