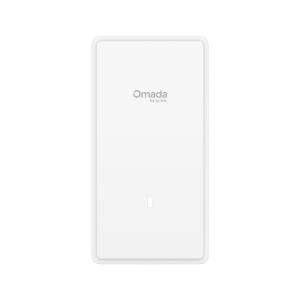

TP-Link EAP775-Wall BE9300 Wall Plate Wi-Fi 7 Access Point

IMG 1 of 5
Our Price:
$492.80
or quickly purchase this product
Backorder
Part Number:
559848
(?) Brand:
TP-Link
Manuf No:
EAP775-Wall
EAP775Wall
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
EAP775-Wall, EAP775Wall, NWTLEAP775WALL, NWTL-EAP775-WALL

EAP775-Wall

BE9300 Wall Plate Wi-Fi 7 Access Point

  • 6-Stream Tri-Band Wi-Fi 7:5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.
  • Flexible and Aesthetic Integration:Versatile mounting design with a paintable cover included for flexible integration.
  • Multiple Ports with PoE Flexibility:2 2.5G Ports (1 PoE+/PoE++ In) + 3 Gigabit Ports (2 PoE Out or 1 PoE+ Out)
  • Low Latency and Interference:Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.
  • Easy Setup, Easy to Use:Works with Omada SDN for one-click setup.
  • Advanced Features:Supports centralised cloud management, mesh, and seamless roaming.
  • Complete In-Room Wi-Fi with More Connections:Supports 380+ concurrent connections** and covers up to 1050 ft (100 m) * for reliable and extensive wireless connectivity.
HARDWARE FEATURES
Interface Uplink: 1 2.5G Ethernet Port
Downlink: 1 2.5G Ethernet Port + 3 Gigabit Ethernet Ports
(Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input.)
Physical Security LockYes
ButtonReset
Power Supply802.3at/bt PoE
PoE OutTwo Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.
The PoE Out feature requires 802.3bt input.
Max. Power Consumption43.35Wwith 25W PoE Out)
Dimensions ( W x D x H )6.8 3.6 1.6 in (172.9 91.2 41.3 mm)
Antenna6 Internal Antennas
2.4 GHz: 2 5 dBi
5 GHz: 2 5.5 dBi
6 GHz: 2 5.5 dBi
BluetoothV5.2
MountingWall Mounting (Kits included)
WIRELESS FEATURES
Coverage1050 ft (100 m)*
Concurrent Clients380+**
Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax/be
Frequency2.4 GHz, 5 GHz, and 6 GHz
Signal Rate 6 GHz: Up to 5765 Mbps
5 GHz: Up to 2882 Mbps
2.4 GHz: Up to 688 Mbps
Wireless Functions MLO
4K-QAM
Multi-RUs
320 MHz Bandwidth
24 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Beamforming
Rate Limit (Based on SSID/Client)
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power6-20 dBm (2.4 GHz, ERIP)
6-23 dBm (5 GHz, U-NII-1, U-NII-2A, ERIP)
6-27.5 dBm (5 GHz, U-NII-2C, ERIP)
6-23 dBm (6 GHz,ERIP)
Management Features
Omada AppYes
Centralized Management Omada Hardware Controller
Omada Software Controller
Omada Cloud-Based Controller
Cloud AccessYes. Requiring the use of an Omad Controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogSystem Log
SSHYes
Web-based ManagementYes
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
CertificationCE, RoHS
Package Content EAP775-Wall
Paintable Cover
Installation Guide
Mounting Kits
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment Operating Temperature: 040 (32104 )
Storage Temperature: -4070 (-40158 )
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing

No additional files, specification sheets, guides or documentation found for product.
