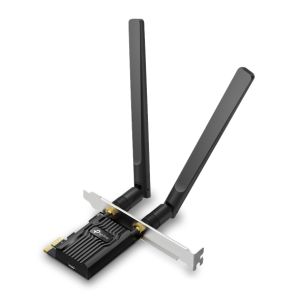

TP-Link Archer TX10E AX900 Wi-Fi 6 Bluetooth PCIe Adapter

IMG 1 of 8
Our Price:
$49.30
or quickly purchase this product
Backorder
Part Number:
559849
(?) Brand:
TP-Link
Manuf No:
Archer TX10E
Shipping Weight:
0.23 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
Archer TX10E, NWTLARCHERTX10E, NWTL-ARCHERTX10E

AX900 Wi-Fi 6 Bluetooth PCIe Adapter

  • Super-Fast Dual-Band Wi-Fi 6:Wi-Fi 6 and dual bands (600 Mbps on 5 GHz + 287 Mbps on 2.4 GHz) for up to 887 Mbps, ensuring a silky-smooth experience.
  • Reliable Bluetooth 5.3Improves connection stability, data transfer efficiency, and provides a high-quality connection experience in complex environments.
  • MU-MIMO and OFDMAExperience ultra-low latency and congestion MU-MIMO and OFDMA technology for unparalleled network efficiency.
  • Two High-performance External Antennas:Provide extensive network coverage and strong, reliable signals.
  • Advanced WPA3:WPA3 protocol provides safer network connections and protects personal privacy.


HARDWARE FEATURES

InterfacePCI Express x1/x4/x8/x16
Dimensions ( W x D x H )120.8 78.5 20.9 mm
(4.76 3.09 0.82 in)
AntennaTwo High Gain Dual-Band Antennas

Bluetooth Features

Standards and ProtocolsBluetooth 5.3/5.2/5.0/4.2/4.0
InterfaceF_USB 2.0

WIRELESS FEATURES

Wireless StandardsIEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ax 2.4 GHz
Signal Rate5 GHz
11ax: Up to 600 Mbps(dynamic)
11ac: Up to 433 Mbps(dynamic)
11n: Up to 150 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 287 Mbps(dynamic)
11n: Up to 200 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity5 GHZ:
11a6M: -94dBm
11ax HE80 MCS11: -59dBm
11ax HE80 MCS0: -87dBm

2.4 GHZ:
11g6M: -95dBm
11ax HE40 MCS11: -65dBm
11ax HE40 MCS0: -93dBm
Wireless ModesClient mode, Hotspot mode
Wireless SecurityWEP, WPA/WPA2/WPA3(Personal/Enterprise), WPA-PSK/WPA2-PSK
Modulation TechnologyDBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 1024QAM
Transmission Power5 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP),
2.4 GHz : 24dBm(FCC) / 20dBm(CE) (EIRP)

OTHERS

CertificationFCC, CE, RoHS
Package ContentAX900 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter Archer TX10E
Two High Gain Dual-Band Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
System RequirementsWindows 10/11(64-bit)
EnvironmentOperating Temperature: 0~40 (32 ~104)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.
