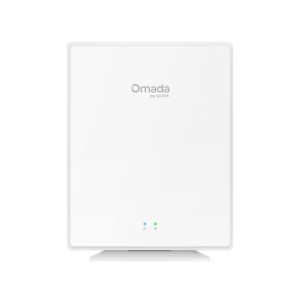

TP-Link EAP650GP-Desktop Omada AX3000 Wi-Fi 6 Desktop GPON Access Point

IMG 1 of 5
Our Price:
$264.90
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
559853
(?) Brand:
TP-Link
Manuf No:
EAP650GP-Desktop
EAP650GPDesktop
Shipping Weight:
0.51 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
EAP650GP-Desktop, EAP650GPDesktop, NWTLEAP650GPDESKTOP, NWTL-EAP650GP-DESKTOP

EAP650GP-Desktop

Omada AX3000 Wi-Fi 6 Desktop GPON Access Point

  • Seamless 3.0Gbps Wi-Fi 6 Speeds:2402Mbps on 5 GHz &74 Mbpson 2.4 GHz
  • Multiple Ports for More Devices:1 GPON port &4 GbEports (two support PoE-out)
  • One Fiber for Multiple Services: Wired, Wireless,Voice, VoIP, Data, and HD Video Services
  • VoIP Calls:Support multiple VolP accounts and various call features, exceeding traditional landlines
  • Easy Use: One-Click Pairing andAutomatic Adoption
  • High Flexibility:Support bothdesktop and wall-mounting setups
  • Advanced Fueatures:Unified management for OLT^ and Omada devices, PPSK, multiple portals,Omada mesh, and seamless roaming


HARDWARE FEATURES
Interface 1x GPON Port
1x FXS Port
4x Gigabit Ethernet Ports (Two Support 802.3af PoE Out)

Note: The two PoE ports support up to 22.4 W total PoE out. If the total PoE power exceeds the upper limit, the lower-priority ports will shut down automatically. A port also automatically powers off if its output exceeds 15.4 W. Powered-off ports will attempt to resume power supply after 10 seconds. By default, ETH0 has a higher port priority than ETH1.
GPON Interface Port Type: SC-APC
Standards and Protocols: ITU-984.x, G.988, Class B+
Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream)
Fiber Type: 9/125 um Single mode
Max. Cable Length: 20 km
Button Reset
LED
Power Supply53.5V/0.81A DC
Max. Power Consumption20W
Note: PoE out power not included.
Weight511g
Dimensions ( W x D x H )6.9 5.5 1.3 in (175 140 33 mm)
AntennaInternal Omni
2.4 GHz: 2 4.5 dBi
5 GHz: 3 5 dBi
MountingDesktop / Wall mouting (Kits included)
WIRELESS FEATURES
Concurrent Clients100+*
Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax
Frequency2.4 GHz and 5 GHz
Signal Rate 5 GHz: 2402 Mbps
2.4 GHz: 574 Mbps
Wireless Functions Multiple SSIDs (16 SSIDs, 8 on each band)
Enable/Disable SSID Broadcast
Enable/Disable Wireless Radio
Guest Network
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
Seamless Roaming
Mesh
Beamforming
22 (2.4G &5G) MU-MIMO
UL/DL OFDMA
Rate Limit (Based on Client)
Band Steering
Load Balance
Airtime Fairness
RADIUS Accounting
MAC Authentication
Reboot Schedule
Wireless Schedule and Statistics
Static IP/Dynamic IP
Wireless Security Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 &band2, EIRP)
<29 dBm(5 GHz, band3, EIRP)

FCC:
<26dBm (2.4 GHz)
<27 dBm (5 GHz)
Management Features
Omada AppYes
Restore &BackupYes
NTPYes
Centralized Management Omada Hardware Controller
Omada Software Controller
Omada Central (Cloud-Based)
Omada App
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogSystem Log
SSHYes
Web-based ManagementYes
Zero-Touch ProvisioningYes.
OTHERS
CertificationCE, FCC, RoHS
Package Content EAP650GP-Desktop
Desktop/Wall Mounting Kit
Installation Guide
Environment Operating Temperature: 040 (32104 )
Storage Temperature: -4070 (-40158 )
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
