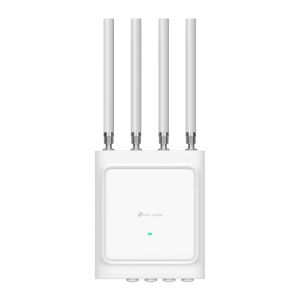

TP-Link EAP668-Outdoor HD AX3600 Indoor/Outdoor Wi-Fi 6 Access Point

IMG 1 of 5
Our Price:
$1,170.40
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
559856
(?) Brand:
TP-Link
Manuf No:
EAP668-Outdoor HD
EAP668Outdoor HD
Shipping Weight:
5.59 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
EAP668Outdoor HD, EAP668-Outdoor HD, NWTLEAP668OUTDHD, NWTL-EAP668-OUTD-HD

EAP668-Outdoor HD

AX3600 Indoor/Outdoor Wi-Fi 6 Access Point

  • High-Density Connectivity: Supports up to 1,024 devices.*
  • Ideal for Outdoor Environments:IP68-rated weatherproof enclosure, 6 kV lightning protection, and a reliable operating range of -40 C to +70 C.
  • High-gain Detachable Antennas:4 External N-Type Omni Antennas, 6 dBi Dual-Band (Antennas Included).
  • Ultra-Fast 3.6 Gbps Wi-Fi 6 Speeds:1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.
  • Multiple Ports for Flexible Network Solutions:1 10G SFP+ slot, 1 2.5G PoE-In Port, and 1 Gigabit PoE-Outport.
  • PoE+/PoE++Powered and PoE+ Out:Supports 802.3at/bt PoE inputand 802.3at PoE output.
  • Advanced Features:Omada Mesh, Seamless Roaming, Bluetooth, and Centralised Cloud Management.


HARDWARE FEATURES
Interface1 2.5G Ethernet Port + 1 Gigabit Ethernet Port + 1 10G SFP+
ButtonReset
Power Supply802.3at/bt PoE
Max. Power Consumption802.3bt:
EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out)
US: 25.4W (bt type3: af PSE out; bt type4: at PSE out);
802.3at:
EU: 20.2W (PSE disabled)
US: 25.4W (PSE disabled)
Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input.
Dimensions ( W x D x H )9.5 3.2 12.3 in (240 80 312 mm) (excluding antennas, waterproofing kit, and mounting kit)
Antenna4 External Dual-Band Omni Antennas
2.4 GHz: 6.0 dBi
5 GHz: 6.0 dBi
BluetoothYes
Weatherproof EnclosureIP68
MountingWall/pole mouting (kits included)supporting horizontal 45 adjustment
Optional bracket accessory APM-110: Supports vertical 90, horizontal 45 adjustment
Optional bracket accessory APM-100: Supports vertical 45 , horizontal 45 adjustment

(Note: Optional bracket accessories need to be purchased separately)
WIRELESS FEATURES
Concurrent Clients1,000+*
Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax
Frequency5 GHz, and 2.4 GHz
Signal Rate 5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 1148 Mbps
Wireless Functions 1024-QAM
Mesh
Seamless Roaming(802.11k/v/r)
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Guest Network
Automatic Channel Assignment (Adjust transmit Power on dBm)
Transmit Power Control
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDs:16 (8 for each band)
MU-MIMO (4 4 MU-MIMO DL/UL)
UL/DL OFDMA
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IP
Wireless Security VLAN
Access Control
Rogue AP Detection
Captive Portal Authentication
Maximum number of MAC Filter: 4,000
Wireless Isolation between Clients
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);
FCC: < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3)
Management Features
Omada AppYes
Restore & BackupYes
Firmware update via WebYes
NTPYes
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
SSHYes
Web-based ManagementYes
OTHERS
CertificationCE, FCC, RoHS
Package Content EAP668-Outdoor HD
4 External Dual-Band Omni Antennas
Installation Guide
Mounting Kit
Waterproof Kit
Environment Operating Temperature: -40 C70 C (-40 F158 F);
Storage Temperature: -40 C70 C (-40 F158 F);
Operating Humidity: 10%90% non-condensing;
Storage Humidity: 5%90% non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
