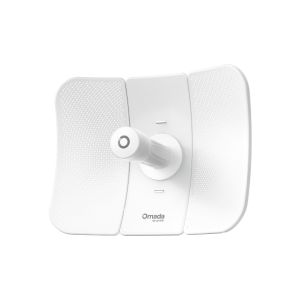

TP-Link Beam Bridge 5 UR KIT Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge

IMG 1 of 4
Our Price:
$400.40
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
559859
(?) Brand:
TP-Link
Manuf No:
Beam Bridge 5 UR KIT
Shipping Weight:
3.76 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
Beam Bridge 5 UR KIT, NWTLBEAMBRIDGE5URKIT, NWTL-BEAMBRIDGE5URKIT

Beam Bridge 5 UR KIT

Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge

  • Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission:With 23dBi high-gain directional antennas.*
  • Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
  • App-Guided Alignment: Visualised app-guided alignment for long-distance setups and instant speed testing for installation verification.
  • Simple PoE Deployment and Power Supply:1 Gigabit PoE port supports both802.3af PoE andPassive PoE for simplified wiring and lower deployment costs.
  • Designed for Outdoor Durability &Reliability:IP65 weatherproof enclosure, 6 kV lightning protectionand operating range of -40 C to +70 C.**
  • Remote Monitoring &Management: Standalone mode or Omada SDN mode for remote centralised management via Web UI or App


HARDWARE FEATURES
Interface1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In
Button1 Reset Button
1 System Mode Selection Button
DIP SwitchRole Switch
Power Supply802.3af PoE (1,2pins; 3,6pins)
24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included)
Max. Power Consumption15.8W
Dimensions ( W x D x H )14.4 11.0 8.1 in (366 280 207 mm)
AntennaExternal 22 Dual-Polarized Directional MIMO Antennas
5 GHz: 23 dBi
Antenna BeamwidthHorizontal: 9, Vertical: 7
Weatherproof EnclosureIP65
Bandwidth5 GHz: 20 MHz/40 MHz/80 MHz
MountingPole Mounting (Kits Included)
WIRELESS FEATURES
PtPYes
Transmission Distance15 km (9.3 mi)
Wireless StandardsIEEE 802.11 a/n/ac
Frequency5 GHz
Signal Rate5 GHz: Up to 867 Mbps
Wireless Functions MU-MIMO: 5G 2x2 MU-MIMO DL
Maximum number of associated STAs: 8
Speed Test
Channel Optimization
Antenna Alignment
ACS (Automatic Channel Selection)
Rate Limit
Guest Network
Wireless Security VLAN
Rogue AP Detection
Maximum number of MAC Filter: 4,000
Wireless Encryption
Transmission Power CE:
<23 dBm (5 GHz, U-NII-1/2A, ERIP)
<30 dBm (5 GHz, U-NII-1/2C, ERIP)

FCC:
<27 dBm (5 GHz, U-NII-1)
<27 dBm (5 GHz, U-NII-3)
Management Features
Omada AppYes
Restore &BackupYes
Firmware update via WebYes
NTPYes
Centralized Management Omada Central (Cloud-Based)
Omada Hardware Controller
Omada Software Controller
Cloud AccessYes. Require the use of an Omada Controller.
Email AlertsYes
LED ON/OFF ControlYes
SNMPYes
SSHYes
Web-based ManagementYes
Zero-Touch ProvisioningYes
OTHERS
CertificationCE, FCC, RoHS
Package Content Beam Bridge 5 UR KIT
Installation Guide
Mounting Kit
Passive PoE Adapter
Power Cord
Lightning ProtectionEthernet Ports: 6 kV
Environment Operating Temperature: -40 C70 C (-40 F158 F);
Storage Temperature: -40 C70 C (-40 F158 F);
Operating Humidity: 10%90% non-condensing;
Storage Humidity: 5%90% non-condensing
Weight1.1 kg (2.43 lb)
