Corsair FRAME 4000X RS Mid-Tower PC Case, White

IMG 1 of 3
Our Price:
$244.20
RRP:
$11,878.81
You Save:
$11,634.61
or quickly purchase this product
Backorder
Part Number:
562139
(?) Brand:
Corsair Web Site
Manuf No:
CC-9011303-WW
CC9011303WW
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
CAC4000XRSWH, CAC-4000XRS-WH, CC9011303WW, CC-9011303-WW


FRAME 4000X RS

MODULAR MID-TOWER PC CASE
SHOW OFF

HIGH AIRFLOW RGB FRONT PANEL

The front panel is a brand-new design for CORSAIR that combines high-airflow ventilation with built-in RGB lighting for a customisable look with great cooling. The front panels RGB lighting uses 5V ARGB for easy motherboard connectivity and fan control using popular motherboard software.

DOUBLE DOWN ON COOLING

MULTIPLE 360mm RADIATOR SUPPORT

Boost your cooling with three dedicated mounting locations for 360mm radiators front, roof, and side. You can mount up to 13x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.

GO WITH THE FLOW

FOUR RS120 PWM FANS INCLUDED

RS120 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimise friction, delivering a perfect combination of high airflow and quiet operation.

MODULAR MARVEL

CUSTOMISABLE FRAME DESIGN

The FRAME Modular Case System lets you modify your build with swappable parts to tailor the case to your needs. There's a wide selection of FRAME accessories, ranging from various front and side panels to alternative PSU shrouds or motherboard trays, making it easy to create a completely different look.

Infinirail
FAN FOCUSED

INFINIRAIL FAN MOUNTING SYSTEM

This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.

LOADED WITH USEFUL FEATURES

AN EASY BUILD AWAITS

The FRAME 4000X has thoughtful features throughout for DIY PC builders.

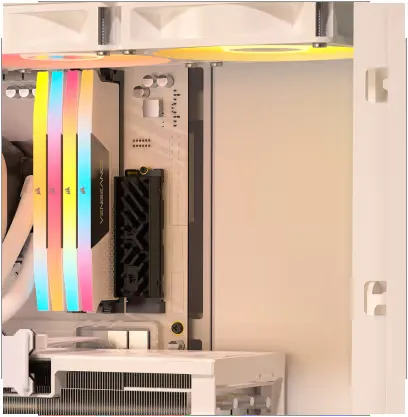

Cables
HIDE YOUR CABLES

Fully compatible with reverse-connector motherboards for pristine builds with no visible cables.

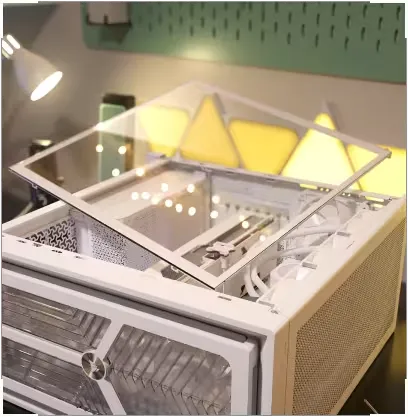

Tempered Glass
TEMPERED GLASS SIDE PANEL

Show off your build's lighting and cable management with a full-length tempered glass side panel.

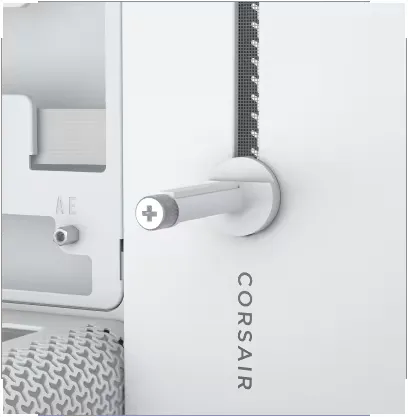

Anti-sag
GPU ANTI-SAG ARM

The adjustable GPU Anti-sag Stabilisation Arm protects oversised GPUs and your PCIe slot from sag-related damage.

WIDE COOLING FLEXIBILITY

Customise your cooling setup with room for up to 13x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators.

DIMENSIONS
FAN CAPACITY
RADIATOR CAPACITY

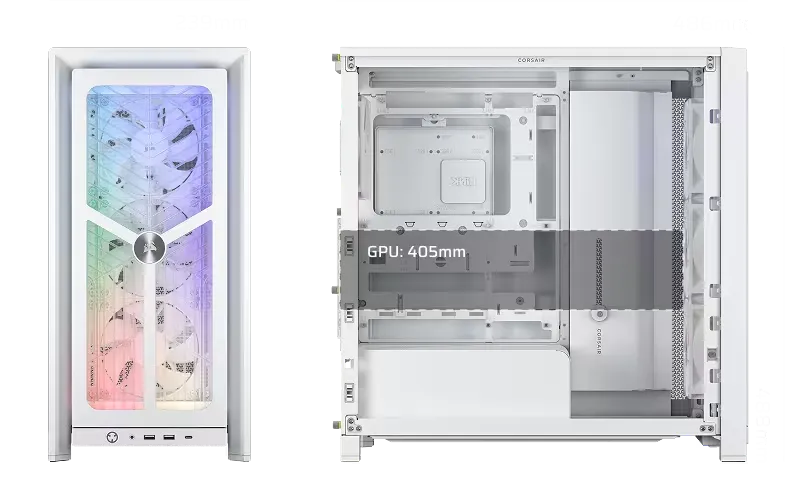

The FRAME 4000X has space to accommodate the most ambitious builds with room to fit GPUs up to 405mm, even with 25mm front fans installed.

Dimensions

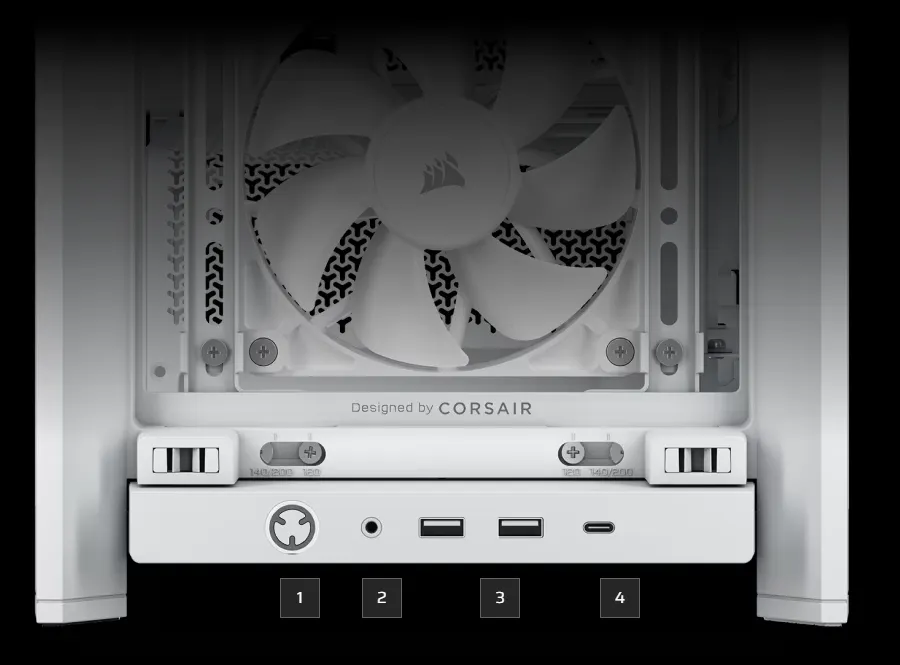

Front Panel I/O

MODERN I/O WITH ARGB POWER BUTTON

Fast I/O including a USB 3.2 Gen 2x2 Type-C Port, 2x USB Gen 1 Type-A Ports, a combination audio/microphone jack, and an ARGB power button to complement your builds lighting.

1
ARGB Power Button
2
Headphone / Mic Combo Jack
3
2x USB 3.2 Gen 1 Type-A Ports
4
1x USB 3.2 Gen 2x2 Type-C Port
Warranty
TWO-YEAR WARRANTY

WORLD-CLASS SUPPORT

CORSAIR's award-winning service means you can enjoy your gear worry-free.

Specifications
Case Supported

Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Case Height

486mm

Case Length

488mm

Case Width

239mm

Material

Steel, Tempered Glass, Plastic

Colour

White

Case Size

Mid-Tower

Radiator Compatibility

120mm, 140mm, 240mm, 280mm, 360mm

Case Window

Tempered Glass

Compatible Liquid Coolers

H60, H100, H115, H150, NAUTILUS, TITAN

Case Warranty

2 Year

Internal 3.5" Drive Bays

1

Internal 2.5" Drive Bays

2

Maximum CPU Cooler Height

170mm

Maximum PSU Length

220mm

Case Front IO

(1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out

Maximum GPU Length

430mm

Weight

11.53kg

Case Expansion Slots

7 Horizontal or 3 Vertical

Case Power Supply

ATX

Radiator Support - Top

360mm, 280mm, 240mm

Radiator Support - Front

360mm, 280mm, 240mm

Radiator Support - Bottom

None

Radiator Support - Side

360mm, 280mm, 240mm

Radiator Support - Rear

140mm, 120mm

Fan Support - Top

3x 120mm, 2x 140mm

Fan Support - Front

3x 120mm, 2x 140mm, 2x 200mm

Fan Support - Bottom

3x 120mm

Fan Support - Side

3x 120mm; 2x 140mm

Fan Support - Rear

1x 120mm, 1x 140mm

Front IO Motherboard Connections

1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio

Reverse Connector Motherboard Support

Yes

Included Fans

RS Series

Dust Filtration

Yes

Cable Routing Space

37mm

RapidRoute Included

No

Left Side Panel

Tempered Glass

Right Side Panel

Steel

Vertical Mount Support

Supported (Riser Card Sold Separately)

Box Contents

FRAME 4000X Case
4x RS120 PWM Performance Case Fans
Case Accessory Box
