All stock codes associated to this product
NHUUDR5GMAX, NHU-UDR-5G-MAX, UDR5GMax, UDR-5G-Max
UDR-5G-MAX
Dream Router 5G Max
Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage.
UniFi Application Suite: Network, Protect, Access, Talk, Connect
Built-in WiFi 7 access point with 6 GHz support
Coverage: 160 m (1,750 ft)
Pre-installed 64GB microSD for NVR
Max. WAN Port Count: 4
2.3 Gbps
IDS/IPS Throughput
300+
Simultaneous Users Connected
Overview
Introducing UniFi 5G
The UniFi 5G Max lineup was created with a clear goal in mind: deliver a sleek, versatile, and exceptionally powerful 5G internet experience that works effortlessly in any environment.
Performance

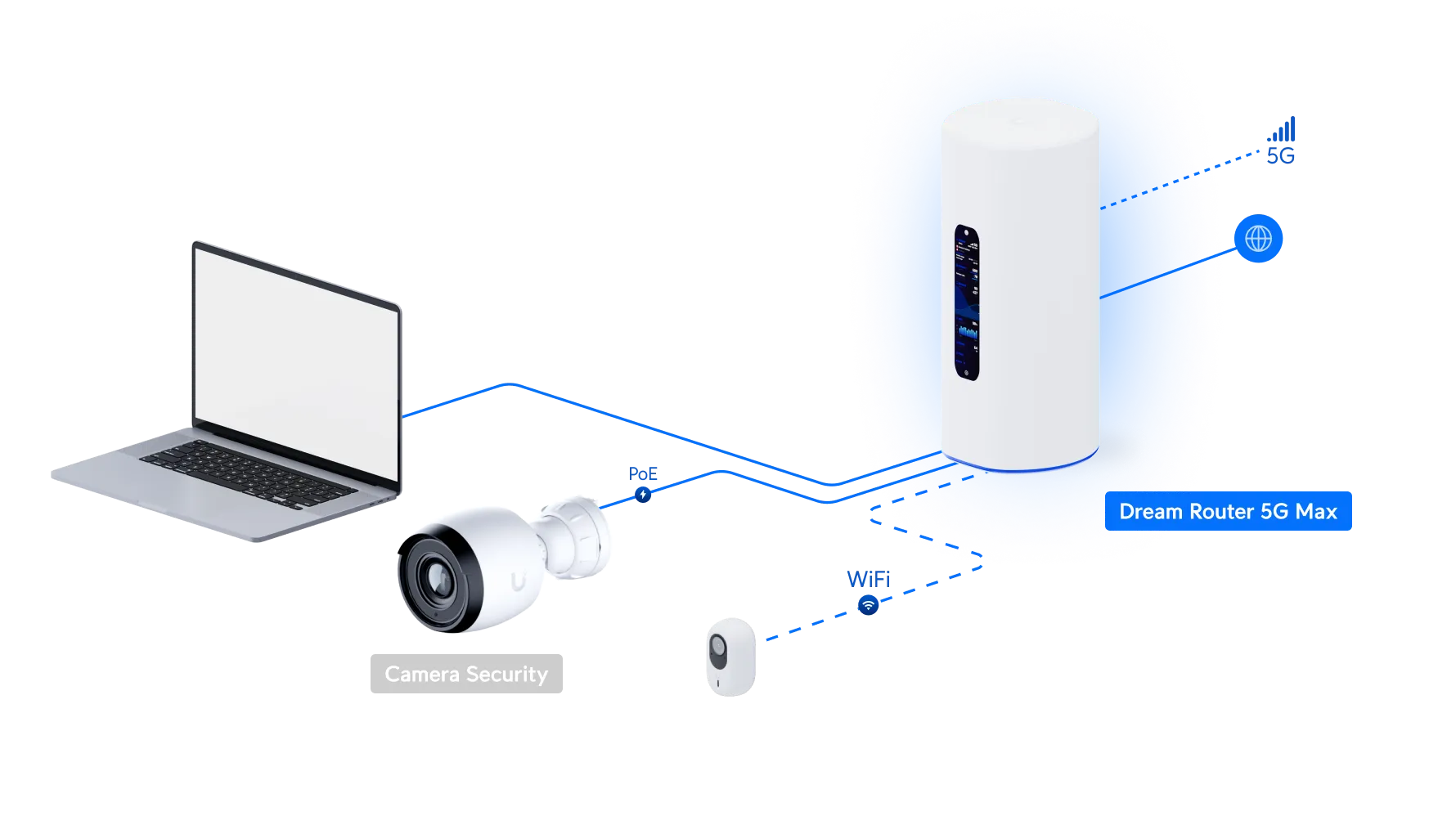

Dream Router 5G Max: The Fully Integrated UniFi Experience
If you want everything UniFi in one device, the Dream Router 5G Max combines 5G connectivity with WiFi 7, local storage, and full UniFi OS application support. Deploy it anywhere 5G is available and run an entire high-performance and scalable network stack instantly.
Unlocked
Fully Unlocked for Maximum Carrier Flexibility
Every device in the UniFi 5G lineup supports both physical SIMs and eSIM, giving you the freedom to choose your carrier and switch whenever needed with zero friction. All are equipped with dual SIM slots, with one SIM replaceable by eSIM, and are fully unlocked: any major carrier, any type of deployment, with one piece of hardware.
Features
Full UniFi Suite Support
Dream Router 5G Max runs the full UniFi application suite with support for 30+ managed UniFi devices and 300+ simultaneously connected users.
3.4 Gbps 5G WAN
Harness full-performance 5G connectivity with up to 4 WAN ports for primary, failover or load-balanced WAN deployments.
Integrated 10G Connectivity
Support demanding clients and high-bandwidth applications with an integrated 10G SFP+ port.
6-Stream Tri-Radio WiFi 7
Tri-radio 2.4/5/6 GHz with 6 spatial streams for consistent tri-band performance.
2.3 Gbps IDS/IPS Throughput
Identify and block threats in real time, both inbound and outbound, with 2.3 Gbps+ IDS/IPS performance.
Frequently Asked Questions
What is the Dream Router 5G Max?
What is the purpose of the 5G connection on the Dream Router 5G Max?
What makes the WiFi performance of the Dream Router 5G Max stand out?
What is the maximum WiFi speed that the Dream Router 5G Max can deliver?
What ports and connections are available on the Dream Router 5G Max?
Does the Dream Router 5G Max have a PoE port?
Does the Dream Router 5G Max support VPN?
Does the Dream Router 5G Max support wireless meshing?
Can the Dream Router 5G Max be used as a standalone gateway managed by a remote UniFi Network application?
What is the difference between the Dream Router 5G Max and the Dream Router 7?
Overview
Dimensions
110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
UniFi Application Suite
Network, Protect, Access, Talk, Connect
Managed Cameras
(5) HD
(2) 2K
(1) 4K
Simultaneous Users Connected
300+
Default WAN Ports
(1) 10G SFP+
(1) 2.5 GbE RJ45
Port Layout
2.5 GbE RJ45: 4 (1 PoE) (2.5G/1G/100M)
10G SFP+: 1 (10G/1G)
IDS/IPS Throughput
2.3 Gbps
Coverage Area
160 m (1,750 ft)
Security
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Intrusion Prevention (IPS/IDS)
Yes
IDS/IPS Signatures
20,000+ with CyberSecure
VPN & SD-WAN
Site-to-Site VPN
Site Magic: Yes
IPsec: Yes
OpenVPN: Yes
VPN Server
Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes
VPN Client
OpenVPN: Yes
WireGuard: Yes
Site-to-Site VPN Single Tunnel Throughput
Site Magic: 20
VPN Client Single Tunnel Throughput
WireGuard: 8
OpenVPN: 8
Networking
Multi-WAN Load Balancing
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with UniFi LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
2,000
Virtual Network Override
Yes
Integrated WiFi
WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput
6 GHz: 5.7 Gbps
5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps
MIMO
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Antenna Gain
6 GHz: 8 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
Max. TX Power
6 GHz: 22 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0-MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0-MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0-MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40)
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Cellular
5G NR
Category: 5G NR Sub-6
Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
Max. TX Power: HPUE power class 2: 26 dBm
4G LTE
Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power: HPUE power class 2: 25 dBm
3G UMTS
Frequency Bands: B1, B2, B4, B5, B8, B19
Peak Data Speed
5G NSA: Downlink 3.4 Gbps / Uplink 560 Mbps
5G SA: Downlink 1.8 Gbps / Uplink 650 Mbps
4G LTE: Downlink 1.6 Gbps / Uplink 210 Mbps
Speed depends on network coverage and performance at the device location
Antenna Gain
617-960 MHz: 3 dBi
1710-2700 MHz: 7 dBi
3300-5000 MHz: 8 dBi
5150-5925 MHz: 8 dBi
SIM
(2) Nano SIM
(1) Nano-SIM or eSIM
Nano-SIM 2 cannot be used when an eSIM is active
Hardware
NVR Storage
Pre-installed 64 GB microSD for NVR
Expansion Slot
MicroSD Card
Max. PoE Wattage per Port by PSE
15.4W
Voltage Range PoE Mode
44-57V
Max. Power Consumption
34.5W (Excluding PoE output)
Power Method
DC jack (54V DC/1.1A)
Power Supply
54V DC/1.1A
(Adapter included)
Supported Voltage Range
100-240V AC
Heat Dissipation
115 BTU/hr (Excluding PoE output)
Processor
Quad-core ARM Cortex-A53 at 1.5 GHz
Enclosure Material
Polycarbonate
LCM Display
4.7" touchscreen
Management
Ethernet
Bluetooth
LEDs
Ethernet: Yes
SFP+: Yes
System: Yes
ESD/EMP Protection
Air: 8kV, contact: 4kV
Ambient Operating Temperature
0 to 40 C (32 to 104 F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, PTCRB, GCF, Wi-Fi Alliance
Software
Application Requirements - Mobile App
UniFi iOS: Version 10.33.0 and later
UniFi Android: Version 10.36.1 and later
