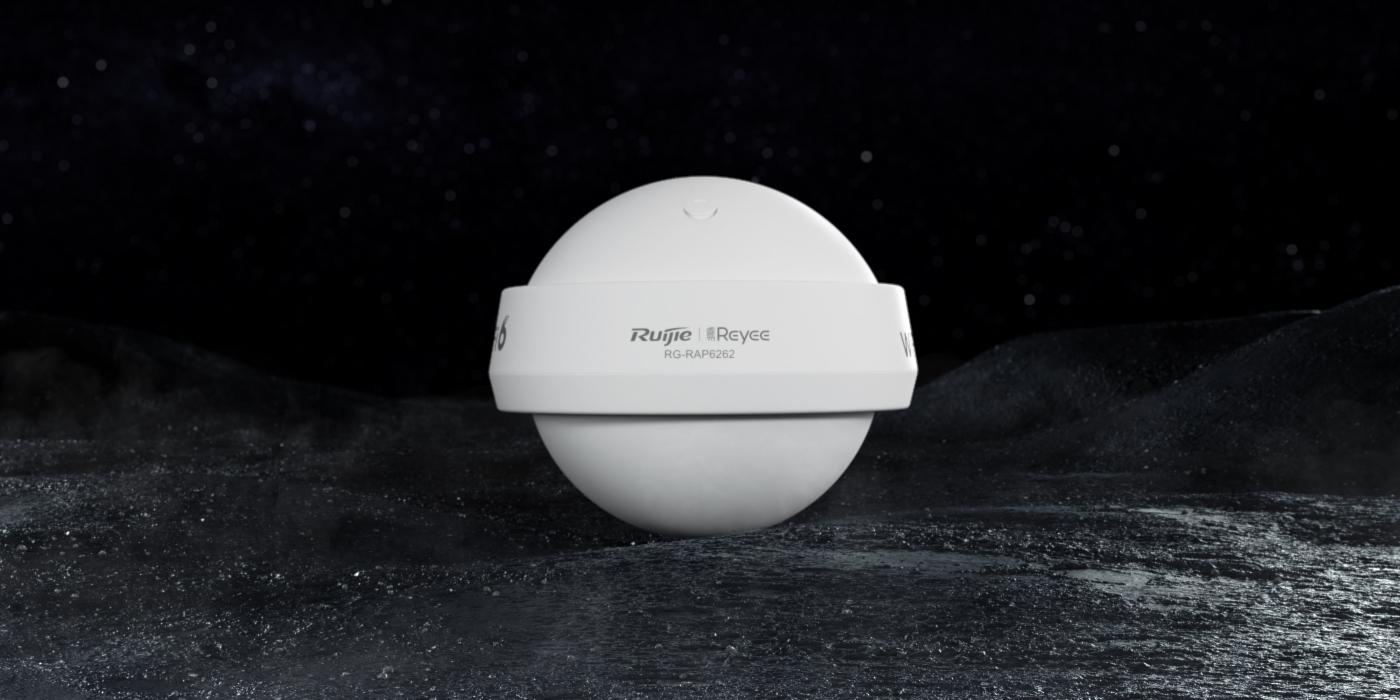

Ruijie Reyee RG-RAP6262 Reyee AX3000 High-performance Outdoor Omni-directional Access Point

IMG 1 of 1
Our Price:
$406.55
RRP:
$519.00
You Save:
$112.45
or quickly purchase this product
Backorder
Part Number:
564515
(?) Brand:
Ruijie Reyee Web Site
Manuf No:
RG-RAP6262
RGRAP6262
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
RGRAP6262, RG-RAP6262
Features

Perfect Blend of High Performance and Full Coverage

  • Wi-Fi 6
    AX3000

  • Omni-directional
    Antennas

  • Optical
    Port

  • Reyee Mesh
    Technology

  • Free Cloud
    Management

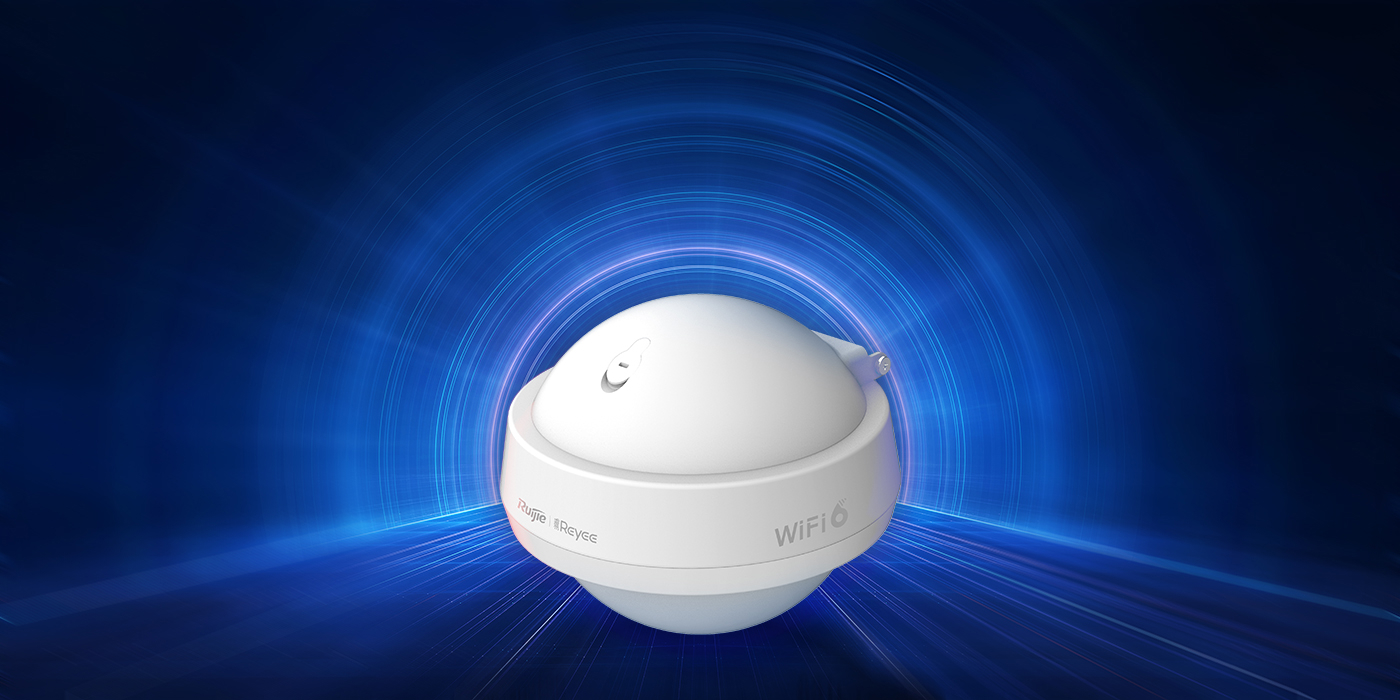

Wi-Fi 6 Ultra-High-Speed

With a revolutionary combination ofOFDMAand1024QAM,802.11axstandard, and160 MHzband,
the RG-RAP6262 delivers a rate as high as 2.976 Gbit/s.

Long-Distance Deployment

Withgigabit opticalports, the RG-RAP6262 supports up to20 km
transmission from a data center with single-mode fibers.

Coping with Harsh Environments

The RG-RAP6262 is completely sealed, waterproof, dustproof, moisture-proof, and flame-retardant,
and uses wind erosion protection, a wide temperature range, and 4 kV surge protection.

  • IP68
    Rating

  • 4 kV Lighting
    Protection

  • Wind Erosion
    Protection

  • -30C to +65C
    Flame-Retardant

Omni-directional Coverage with a Wide Range

Five built-in high-gain antennas, and full coverage with a radius of 100 meters at 2.4 GHz and 300 meters at 5 GHz*.

*The maximum range of Wi-Fi coverage is calculated based on field tests. The transmission range may vary depending on the environment, receiving device, and other items.

Easily Adding Extra Outdoor Wi-Fi with Reyee Mesh

No cabling, and ease of use

Easy Installation

Rack-separated mounting design, easy installation, and plastic cable ties replaced by the iron hoop.

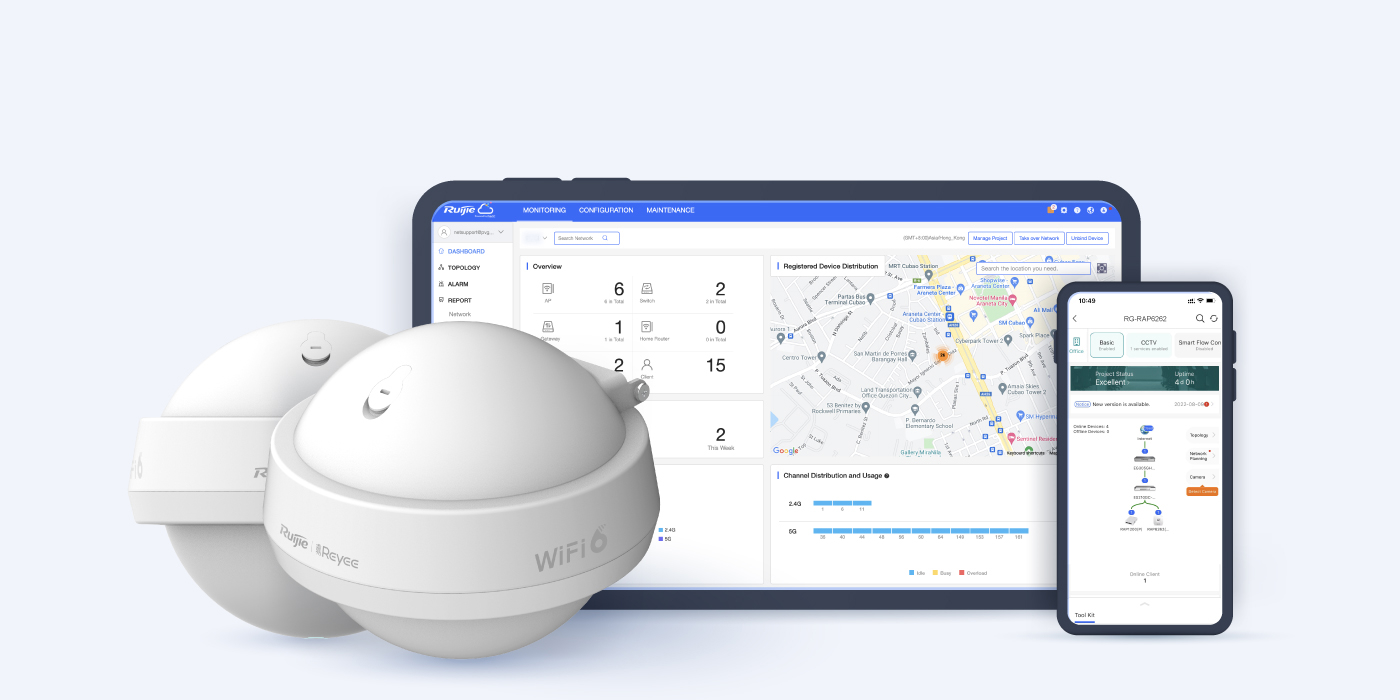

Cloud Makes Your Business Easy

  • Remote monitoring
  • Remote Wi-Fi management
  • Cloud portal authentication
  • Wireless intelligent optimization

Key Specifications
Product Information
Product Type
Product Type
  • Outdoor AP
Hardware Specifications
Wi-Fi Radio
Radio design
  • Dual-radio
    4 spatial streams
    2.4 GHz: 2 x 2, MU-MIMO
    5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate
  • 2974 Mbps
6 GHz wireless data rate
  • No
5 GHz wireless data rate
  • 2401 Mbps
2.4 GHz wireless data rate
  • 573 Mbps
Antenna
Antenna
  • 2.4 GHz: 2 built-in omnidirectional antennas
    5 GHz: 3 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (diameter x height)
  • 230 mm x 195 mm (9.06 in. x 7.68 in.) (spherical device, excluding the mounting bracket)
Color
  • White
Weight
  • 1.4 kg (3.09 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports
  • 1
Number of 1GE SFP ports
  • 1
Power Supply and Consumption
Power supply
  • DC power adapter
    PoE/PoE+
    Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply
  • Yes, one DC power connector (12 V, 2 A)
Dimensions of the DC connector
  • Outer diameter: 5.5 mm (0.22 in.)
    Inner diameter: 2.1 mm (0.08 in.)
    Depth: 10 mm (0.39 in.)
PoE budget
  • No
Maximum power consumption
  • 24 W
Environment and Reliability
Operating temperature
  • 30C to +65C (22F to +149F)
Mounting options
  • Wall/Pole
IP rating
  • IP68
Software Specifications
WLAN
Maximum number of associated wireless clients
  • 64 (2.4 GHz)
    512 (5 GHz)
    512 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
  • 300
IP Service
IPv6
  • Yes
Order Information
Access Point
1
Power Adapter0
Quick Start Guide1
Cat5E UTP Cable0
Mounting Bracket1
Rack-mount Brackets1
Screw2 M820
4 M860
Warranty Card1
Package Weight4.62 kg
Package Dimension (w x d x h)475 mm x 305 mm x 270 mm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Ruijie Reyee) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
