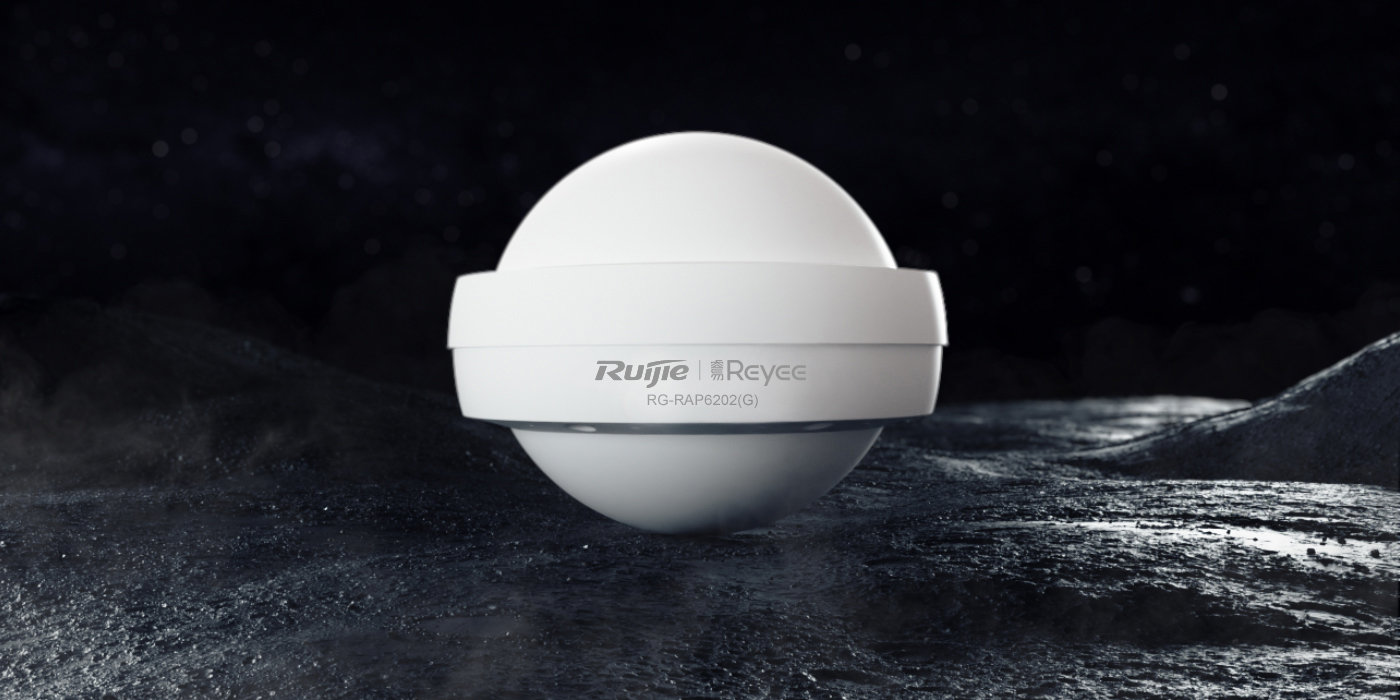

Ruijie Reyee RG-RAP6202(G) Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point

IMG 1 of 1
Our Price:
$258.35
RRP:
$329.52
You Save:
$71.17
or quickly purchase this product
Backorder
Part Number:
564516
(?) Brand:
Ruijie Reyee Web Site
Manuf No:
RG-RAP6202-G
RGRAP6202G
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
RGRAP6202G, RG-RAP6202-G
Features

Classic Once More

  • Wi-Fi 5
    1267 Mbps

  • UFO-style
    Design

  • Reyee Mesh
    Technology

  • Free Cloud
    Management

Coping with Harsh Environments

Completely sealing, waterproof, dustproof, moisture-proof, and flame-retardant design, and wind erosion protection.

  • IP68
    Rating

  • 4 kV Lighting
    Protection

  • Wind Erosion
    Protection

  • -30C to +65C
    Flame-Retardant

Omni-directional Coverage with a Wide Range

Four built-in high-gain antennas, and full coverage with a radius of 100 meters at 2.4 GHz and 300 meters at 5 GHz*.

*The maximum range of Wi-Fi coverage is calculated based on field tests. The transmission range may vary depending on the environment, receiving device, and other items.

Easily Adding Extra Outdoor Wi-Fi with Reyee Mesh

No cabling, and ease of use

Easy Installation

Rack-separated mounting design, easy installation, and plastic cable ties replaced by the iron hoop.

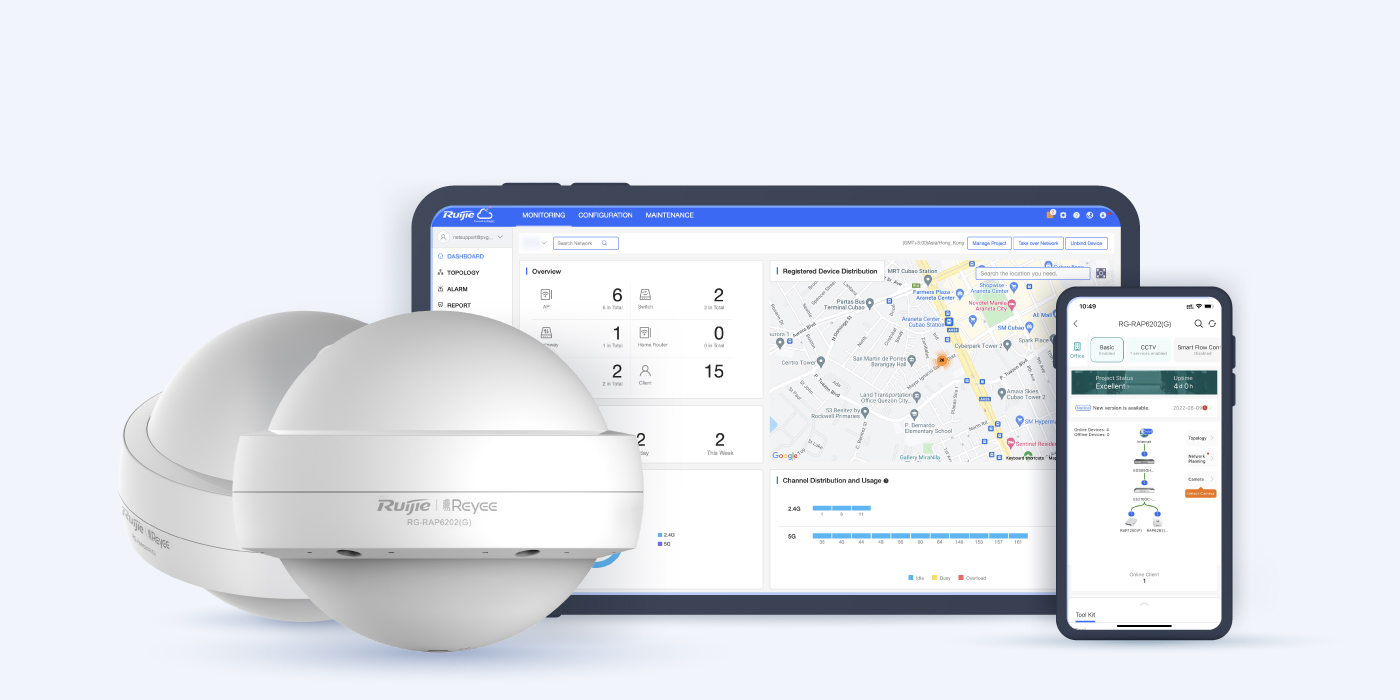

Cloud, Make Your Business Easy

  • Remote monitoring
  • Remote Wi-Fi management
  • Cloud portal authentication
  • Wireless intelligent optimization
Key Specifications
Product Information
Product Type
Product Type
  • Outdoor AP
Hardware Specifications
Wi-Fi Radio
Radio design
  • Dual-radio
    4 spatial streams
    2.4 GHz: 2 x 2, MIMO
    5 GHz: 2 x 2, MIMO
Maximum wireless data rate
  • 1266 Mbps
6 GHz wireless data rate
  • No
5 GHz wireless data rate
  • 866 Mbps
2.4 GHz wireless data rate
  • 400 Mbps
Antenna
Antenna
  • 2.4 GHz: 2 built-in omnidirectional antennas
    5 GHz: 2 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (diameter x height)
  • 200 mm x 166 mm (7.87 in. x 6.54 in.) (spherical device, excluding the mounting bracket)
Color
  • White
Weight
  • 1 kg (2.20 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports
  • 2
Power Supply and Consumption
Power supply
  • DC power adapter
    PoE/PoE+
    Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply
  • Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector
  • Outer diameter: 5.5 mm (0.22 in.)
    Inner diameter: 2.1 mm (0.08 in.)
    Depth: 10 mm (0.39 in.)
PoE budget
  • No
Maximum power consumption
  • 12.95 W
Environment and Reliability
Operating temperature
  • 30C to +65C (22F to +149F)
Mounting options
  • Wall/Pole
IP rating
  • IP68
Software Specifications
WLAN
Maximum number of associated wireless clients
  • 64 (2.4 GHz)
    110 (5 GHz)
    110 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
  • 300
IP Service
IPv6
  • No
Order Information
RG-RAP6202(G) Access Point
1
User Manual1
Pole Clamps2
Mounting Plate1
Expansion Bolts (M8*60)4
M8*20 Screws2
Cable Glands (Pre-installed)2
Connecting Rod (Pre-installed)1
Warranty Card1
Package Weight2.73 kg
Package Dimension (w x d x h)472 mm x 257 mm x 223 mm
