Ruijie Reyee RG-RAP2260(E) Reyee Wi-Fi 6 AX3200 Multi-G Ceiling Access Point

IMG 1 of 3
Our Price:
$385.90
RRP:
$492.24
You Save:
$106.34
or quickly purchase this product
Backorder
Part Number:
564517
(?) Brand:
Ruijie Reyee Web Site
Manuf No:
RG-RAP2260-E
RGRAP2260E
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
RGRAP2260E, RG-RAP2260-E
Features

Easily Build Your Ultra-High Performance Network
in High-Density Environment

Interface
Installation
AX3200
Wi-Fi 6
2.5 Gbps
Wired Uplink
4x4
MU-MIMO
Reyee Mesh
Technology
Free Cloud
Management

Provide Higher Practical Performance for Users

Reyee RG-RAP2260(E) APs 2.4GHz and 5GHz radio outperformed the Ubiquiti U6-LR dramatically
in both the transmit and receive tests.*
4x4:4 MIMO Wi-Fi 6 Access Point Wireless Performance-Single Client-2.4GHz Radio
(as reported by Keysight IxChariot)
Average
Throughput (Mbps)
AP Transmit Performance (Mbps)
AP Receive Performance (Mbps)
UbiquitiU6-LR
ReyeeRG-RAP2260(E)

Note:Average of two runs. AP and client in shielded chamber. 20 streams. All tests run on auto channel with 40MHz bandwidth. One desktop with the ASUS PCE-AC88 802.11ac Network Adapter was used as the client.

Source:Tolly, October 2021

Figure 1

* Source: Tolly Test Report #221153 November 2021
4x4:4 MIMO Wi-Fi 6 Access Point Wireless Performance-Single Client-5GHz Radio
(as reported by Keysight IxChariot)
Average
Throughput (Mbps)
AP Transmit Performance (Mbps)
AP Receive Performance (Mbps)
UbiquitiU6-LR
ReyeeRG-RAP2260(E)

Note:Average of two runs. AP and client in shielded chamber. 20 streams. All tests run on auto channel with 80MHz bandwidth. One desktop with the ASUS PCE-AC88 802.11ac Network Adapter was used as the client.

Source:Tolly, October 2021

Figure 2

Better Multi-User Experience in High-Density Scenarios

Performance upgraded, support client connections over 500.

Boost Your Internet Speed with 2.5Gbps Uplink

Build network for future, protect your investments.
Wireless3200 Mbps
Wired2500 Mbps

Easily Install Extra AP with Reyee Mesh

Less wiring, more relaxing.

Easily Set Up Your Wi-Fi 6 Network in 3 Minutes

With SON (Self-organizing Network) technology, easily set up a whole Wi-Fi network by Ruijie Cloud APP.

Cloud,Make Your Business Easy

  • Self-organizing network
  • Centralized network management
  • Scenario based configuration
  • Cloud portal authentication
  • Remote monitoring and maintenance
Key Specifications
Product Information
Product Type
Product Type
  • Ceiling AP
Hardware Specifications
Wi-Fi Radio
Radio design
  • Dual-radio
    8 spatial streams
    2.4 GHz: 4 x 4, MIMO
    5 GHz: 4 x 4, MU-MIMO
Maximum wireless data rate
  • 3201 Mbps
6 GHz wireless data rate
  • No
5 GHz wireless data rate
  • 2401 Mbps
2.4 GHz wireless data rate
  • 800 Mbps
Antenna
Antenna
  • 2.4 GHz: 4 built-in omnidirectional antennas
    5 GHz: 4 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (W x D x H)
  • 220 mm x 220 mm x 35 mm (8.66 in. x 8.66 in. x 1.38 in.) (excluding the mounting bracket)
Color
  • White
Weight
  • 0.55 kg (1.21 lbs.) (without packaging materials)

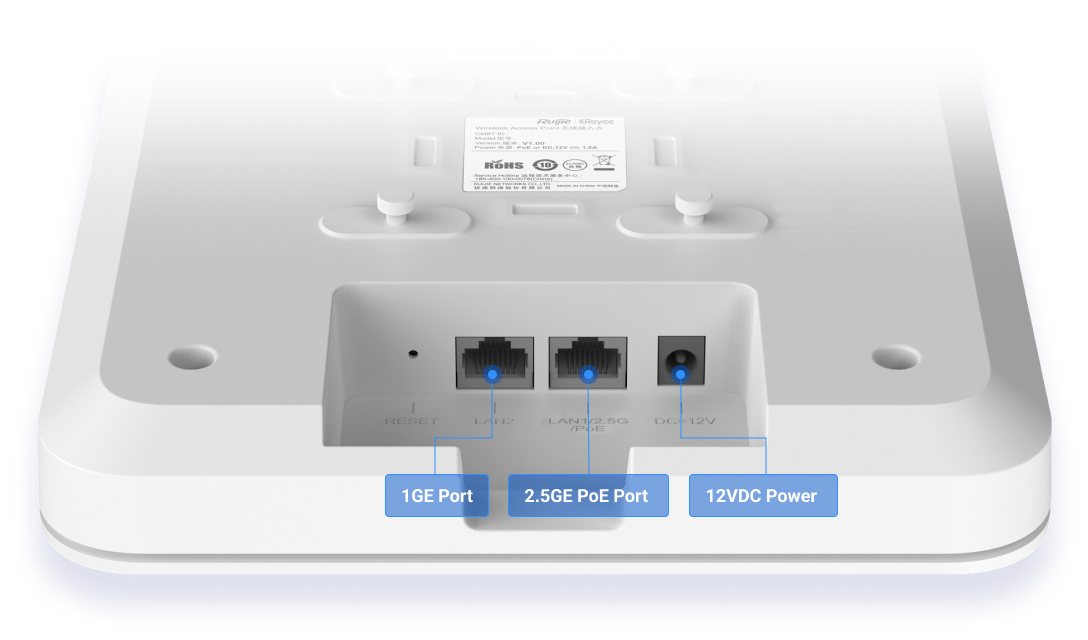

Port Specifications
Number of 10/100/1000BASE-T ports
  • 1
Number of 10/100/1000/2500BASE-T ports
  • 1
Power Supply and Consumption
Power supply
  • DC power adapter
    PoE+
    Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply
  • Yes, one DC power connector (12 V, 2.5 A)
Dimensions of the DC connector
  • Outer diameter: 5.5 mm (0.22 in.)
    Inner diameter: 2.1 mm (0.08 in.)
    Depth: 10 mm (0.39 in.)
PoE budget
  • No
Maximum power consumption
  • 25.4 W
Environment and Reliability
Operating temperature
  • 0C to 40C (32F to 104F)
Mounting options
  • Ceiling/Wall
IP rating
  • IP41
Software Specifications
WLAN
Maximum number of associated wireless clients
  • 64 (2.4 GHz)
    256 (5 GHz)
    256 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
  • 300
IP Service
IPv6
  • Yes
Order Information
Mounting Bracket
1
Cross Pan Head Screw2
Expansion Anchor2
Quick Start Guide1
Warranty Card1
Package Weight1.43kg
Package Dimension (w x d x h)290 mm x 290 mm x 71 mm
