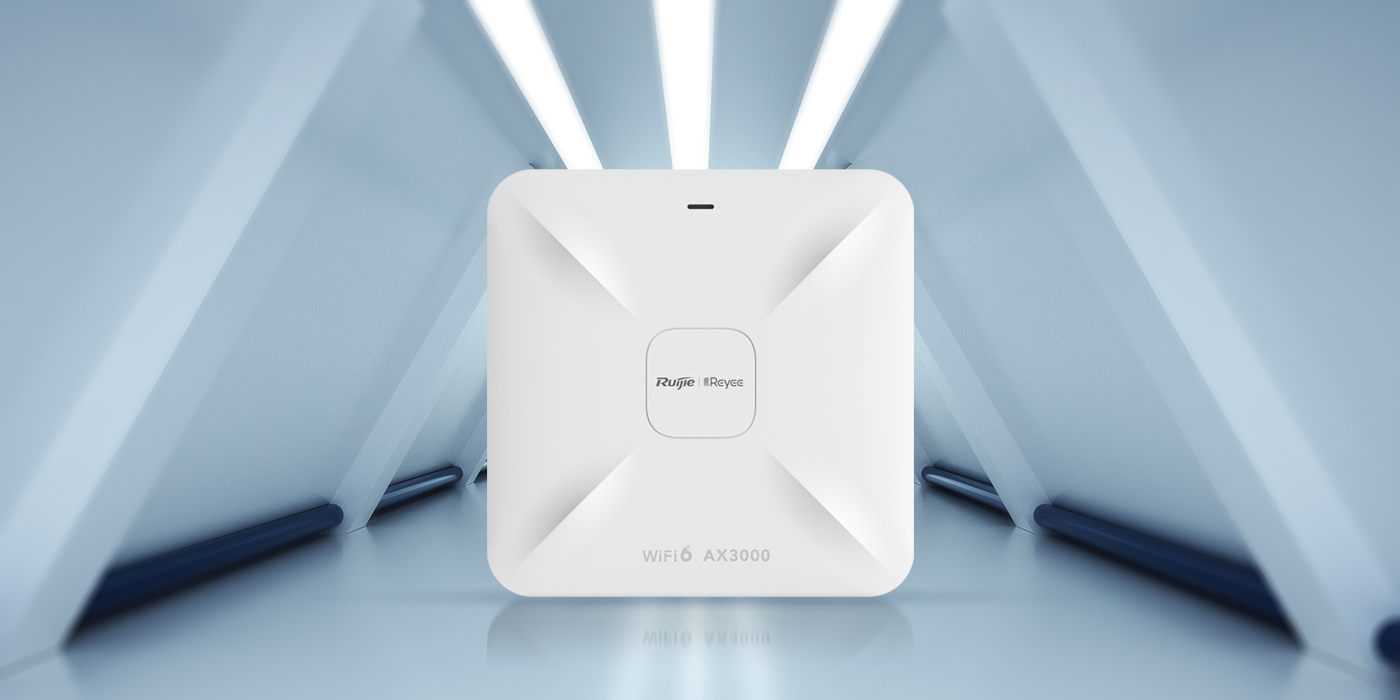

Ruijie Reyee RG-RAP2260 Reyee Wi-Fi 6 AX3000 High Performance Multi-G Ceiling Access Point

IMG 1 of 4
Our Price:
$248.45
RRP:
$341.41
You Save:
$92.96
or quickly purchase this product
Backorder
Part Number:
564518
(?) Brand:
Ruijie Reyee Web Site
Manuf No:
RG-RAP2260
RGRAP2260
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
RGRAP2260, RG-RAP2260
Features

Build Fast Wi-Fi Network for the Future

InterfaceInstallation

  • AX3000
    Wi-Fi 6

  • 2.5 Gbps
    Wired Uplink

  • Reyee Mesh
    Technology

  • Standalone
    Authentication

  • Free Cloud
    Management

  • AX3000
    Wi-Fi 6

  • 2.5 Gbps
    Wired Uplink

  • Reyee Mesh
    Technology

  • Standalone
    Authentication

  • Free Cloud
    Management

Better Multi-User Experience in High-Density Scenarios

Performance upgrades, 500+ client connections.

Boost You Internet Speed with 2.5 Gbps Uplink.

Build a network for the future, protecting investments.

Wireless2975 Mbps

Wired2500 Mbps

Easy Installation of an Extra AP with Reyee Mesh

No cabling, and ease of use.

Flexible Wi-Fi Authentication

Standalone captive portal, easy to enable Wi-Fi authentication based on Ruijie Cloud only.*

* The new firmware to be released in 2023 Q2 will provide standalone portal authentication.

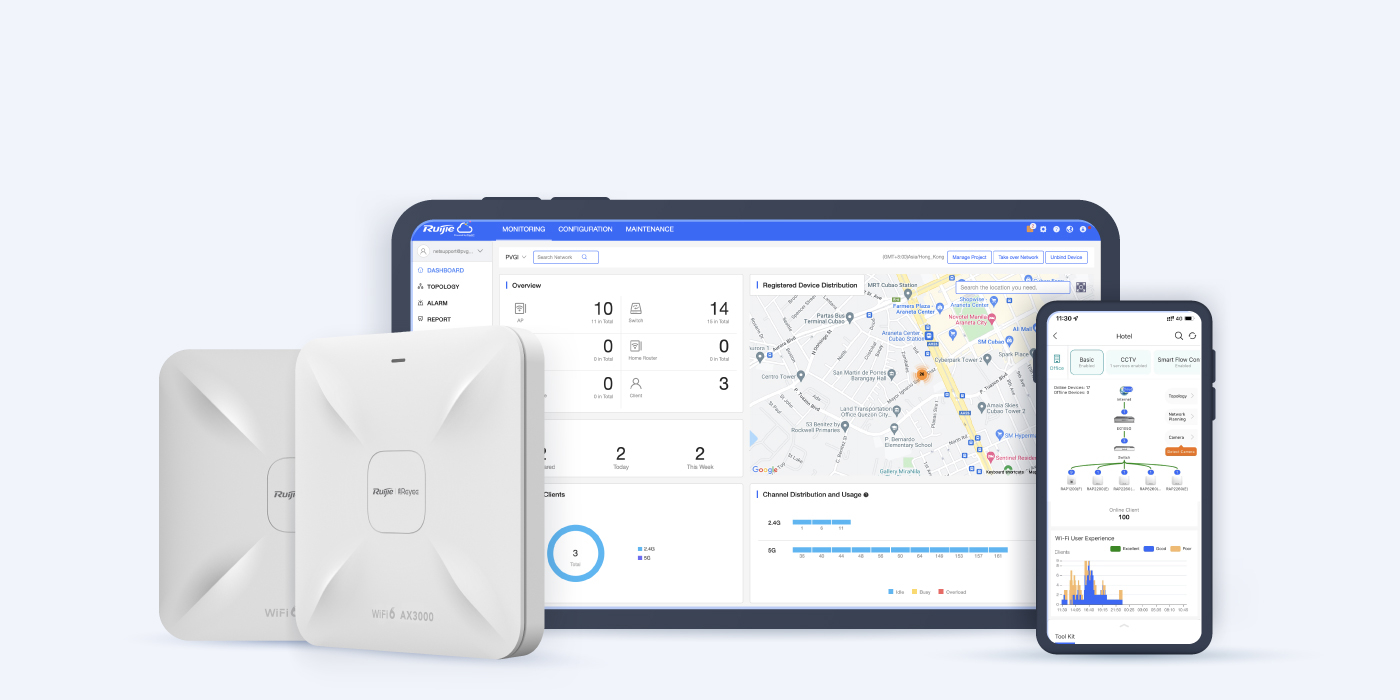

Cloud, Make Your Business Easy

  • Self-organizing Network (SON)
  • Centralized Network Management
  • Scenario-based Configuration
  • Cloud Portal Authentication
  • Remote Monitoring and Maintenance

Key Specifications
Product Information
Product Type
Product Type
  • Ceiling AP
Hardware Specifications
Wi-Fi Radio
Radio design
  • Dual-radio
    4 spatial streams
    2.4 GHz: 2 x 2, MU-MIMO
    5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate
  • 2974 Mbps
6 GHz wireless data rate
  • No
5 GHz wireless data rate
  • 2401 Mbps
2.4 GHz wireless data rate
  • 573 Mbps
Antenna
Antenna
  • 2.4 GHz: 2 built-in omnidirectional antennas
    5 GHz: 3 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (W x D x H)
  • 194 mm x 194 mm x 45.1 mm (7.64 in. x 7.64 in. x 1.78 in.) (excluding the mounting bracket)
Color
  • White
Weight
  • 0.65 kg (1.43 lbs.) (without packaging materials)

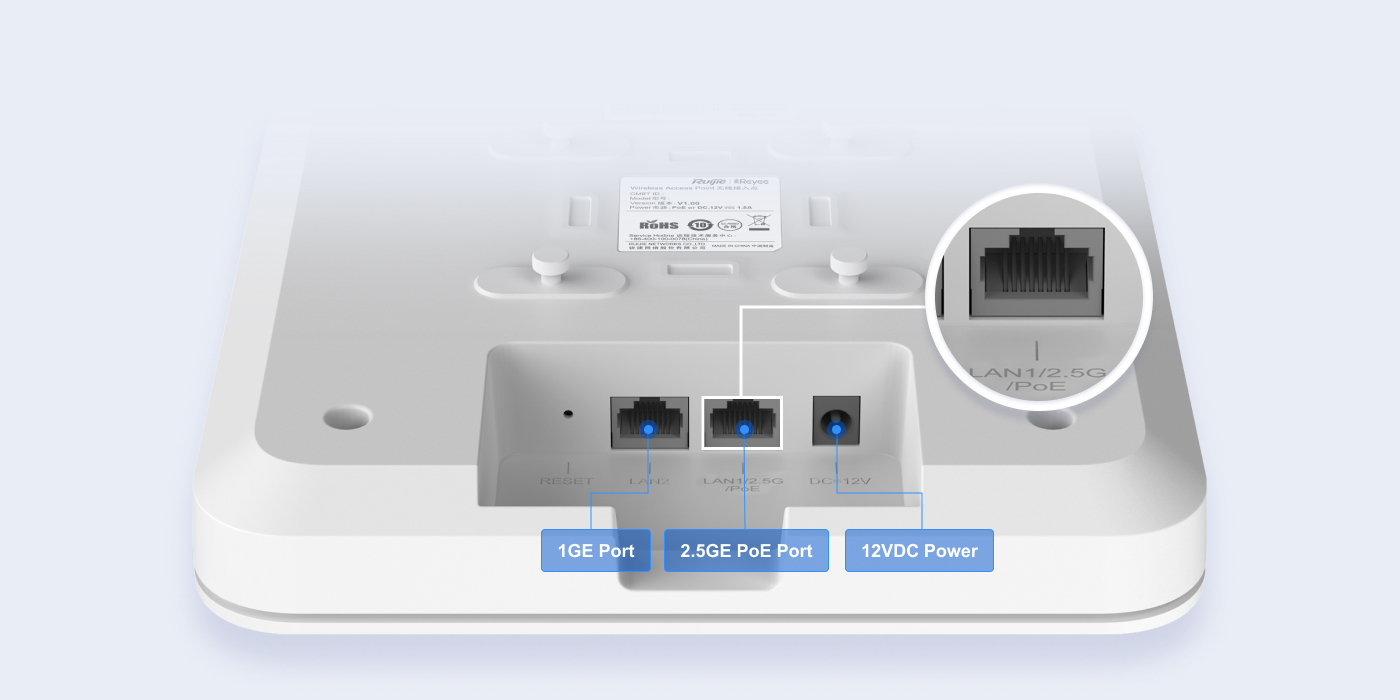

Port Specifications
Number of 10/100/1000BASE-T ports
  • 1
Number of 10/100/1000/2500BASE-T ports
  • 1
Power Supply and Consumption
Power supply
  • DC power adapter
    PoE/PoE+
    Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply
  • Yes, one DC power connector (12 V, 2 A)
Dimensions of the DC connector
  • Outer diameter: 5.5 mm (0.22 in.)
    Inner diameter: 2.1 mm (0.08 in.)
    Depth: 10 mm (0.39 in.)
PoE budget
  • No
Maximum power consumption
  • 18 W
Environment and Reliability
Operating temperature
  • 0C to 40C (32F to 104F)
Mounting options
  • Ceiling/Wall
IP rating
  • IP41
Software Specifications
WLAN
Maximum number of associated wireless clients
  • 64 (2.4 GHz)
    512 (5 GHz)
    512 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
  • 300
IP Service
IPv6
  • Yes
Order Information
Access Point
1
Mounting Bracket
1
Cross Pan Head Screw2
Expansion Anchor2
Quick Start Guide1
Warranty Card1
Package Weight0.85 kg
Package Dimension (w x d x h)222 mm x 220 mm x 68 mm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Ruijie Reyee) web site.
