HOME / Back -> Cases -> Midi-Tower -> Corsair

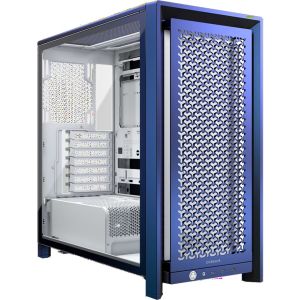

Corsair FRAME 4000D Vault Series Modular Mid-Tower PC Case – Nova, ATX/E-ATX, TG panel, modular, 430mm GPU, 170mm CPU clr, 360mm rad, (LIMITED EDITION

IMG 1 of 1
Our Price:
$237.60
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
564997
(?) Brand:
Corsair Web Site
Manuf No:
CC-9011343-WW
CC9011343WW
Shipping Weight:
8 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
840440417910, CAC4000DVAULTNOVA, CAC-4000D-VAULT-NOVA, CC9011343WW, CC-9011343-WW


FRAME 4000D

MODULAR MID-TOWER PC CASE
Infinirail
FAN FOCUSED

CORSAIR INFINIRAIL FAN MOUNTING SYSTEM

The steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail between 120mm and 140mm fan sizes and adjust the fan locations to ensure targeted airflow without limitations of fixed mounting points.

Scenario

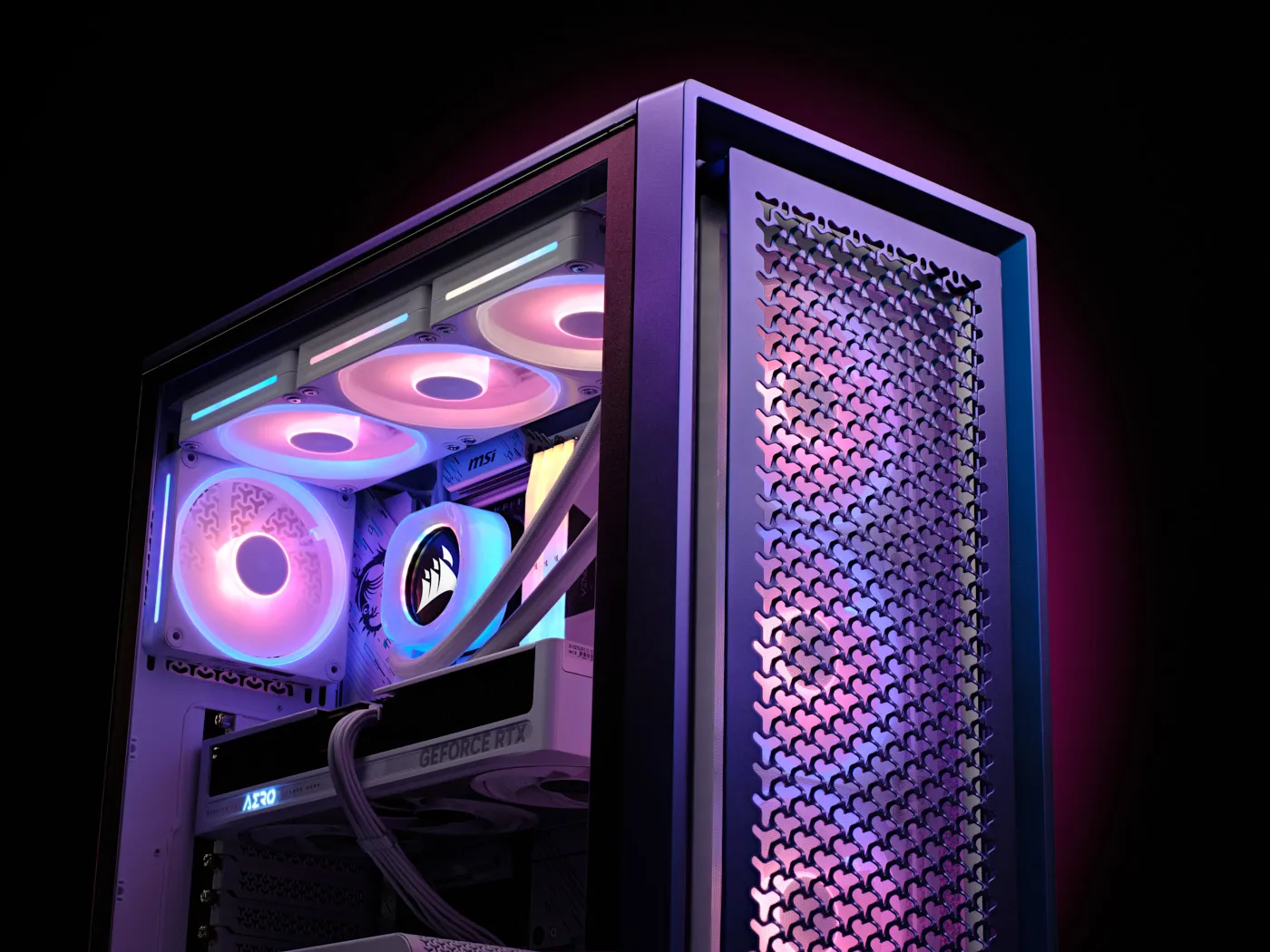

WIDE COOLING FLEXIBILITY

Customise your cooling setup with room for up to 13x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators. Install a GPU up to 405mm, even with fans installed in the front.

DIMENSIONS
FAN CAPACITY
RADIATOR CAPACITY

The FRAME 4000D Vault Series has more than enough space to accommodate and cool your most ambitious build.

Dimensions
Scenario
Warranty
TWO-YEAR WARRANTY

WORLD-CLASS SUPPORT

CORSAIR's award-winning service means you can enjoy your gear worry-free.

Specifications
Case Supported

Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Case Height

486mm

Case Length

490mm

Case Width

239mm

Material

Steel, Tempered Glass, Plastic

Colour

Nova

Case Size

Mid-Tower

Radiator Compatibility

120mm, 140mm, 240mm, 280mm, 360mm

Case Window

Tempered Glass

Compatible Liquid Coolers

H60, H100, H115, H150, NAUTILUS, TITAN

Case Warranty

2 Year

Internal 3.5" Drive Bays

1

Internal 2.5" Drive Bays

2

Maximum CPU Cooler Height

170mm

Maximum PSU Length

220mm

Case Front IO

(1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out

Maximum GPU Length

430mm

Weight

12.54kg

Case Expansion Slots

7 Horizontal or 3 Vertical

Case Power Supply

ATX

Radiator Support - Top

360mm, 280mm, 240mm

Radiator Support - Front

360mm, 280mm, 240mm

Radiator Support - Bottom

None

Radiator Support - Side

360mm, 280mm, 240mm

Radiator Support - Rear

140mm, 120mm

Fan Support - Top

3x 120mm, 2x 140mm

Fan Support - Front

3x 120mm, 2x 140mm, 2x 200mm

Fan Support - Bottom

3x 120mm

Fan Support - Side

3x 120mm; 2x 140mm

Fan Support - Rear

1x 120mm, 1x 140mm

Front IO Motherboard Connections

1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio

Reverse Connector Motherboard Support

Yes

Included Fans

No Fans Included

Dust Filtration

Yes

Cable Routing Space

37mm

RapidRoute Included

No

Left Side Panel

Tempered Glass

Right Side Panel

Steel

Vertical Mount Support

Supported (Riser Card Sold Separately)

Box Contents

FRAME 4000D VAULT - Nova Case
Case Acccessory Box
