| Ports | 4 x 10/100/1000 (UPOE) + 4 x 100/1000/2.5/5/10G (UPOE) + 2 x 10 Gigabit SFP+ (uplink) |
| Power | AC 100-277/ DC 120-418 V (50/60 Hz) |
| Weight | 3.18 kg |
| Subtype | Gigabit Ethernet |
| Capacity | Virtual networks: 16 ? IPv4 routes: 14000 ? Direct IPv4 routes: 10000 ? Indirect IPv4 routes: 4000 ? IPv4 routing entries: 4000 ? IPv6 routing entries: 2000 ? Multicast scale: 1000 ? QoS scale entries: 1000 ? ACL scale entries: 1600 ? Flexible NetFlow entries: 16000 ? VLAN IDs: 4096 ? PVST instances: 128 ? STP Virtual Ports for PVST: 13000 ? STP Virtual Ports for MST: 13000 |
| Features | Access Control List (ACL) support, Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, built-in ASIC, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Unified Access Data Plane (UADP) 2.0, Bootstrap Router (BSR) Mechanism, Preboot Execution Environment |
| PoE Budget | 240 W |
| Device Type | Switch - 8 ports - L3 - Managed |
| Performance | Switching capacity: 128 Gbps ? Forwarding rate: 95.23 Mpps ? Packet buffer size: 6 MB |
| Enclosure Type | Rack-mountable 1U |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP, LISP |
| Dimensions (WxDxH) | 26.9 cm x 24.4 cm x 4.4 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3bt |
| Jumbo Frame Support | 9198 bytes |

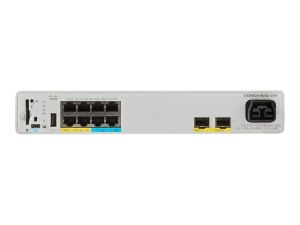

| Product Description | Cisco Catalyst 9200CX - Network Advantage - switch - compact - 8 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 32000 entries |
| Power Over Ethernet (PoE) | UPOE |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, YANG |
