| Ports | 48 x 10/100/1000 (UPOE) |
| Power | AC 120/230 V (50 - 60 Hz) |
| Weight | 7.72 kg |
| Subtype | Gigabit Ethernet |
| Capacity | IPv4 routing table entries: 64000 ? IPv6 routing table entries: 32000 ? Flexible NetFlow entries: 128000 ? VLAN IDs: 4000 ? Switched virtual interfaces (SVIs): 1000 ? Packet buffer size: 32 MB |
| Features | Trunking, full duplex mode, Non-Stop Forwarding (NSF), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, FTP client, Precision Time Protocol (PTP), MACsec support, 3 fans, VXLAN tunnel endpoints (VTEP) support, Control plane protection (CoPP), Location ID Separation Protocol (LISP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN, CoAP support, Security Group Tag (SGT) caching, Audio Video Bridging (AVB), Graceful Insertion and Removal (GIR) mode |
| PoE Budget | 822 W |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Performance | Switching capacity: 256 Gbps ? Stacking bandwidth: 480 Gbps ? Switching capacity with stacking: 736 Gbps ? Forwarding rate: 190.48 Mpps ? Forwarding rate with stacking: 547.62 Mpps |
| Enclosure Type | Rack-mountable 1U |
| Power Redundancy | Optional |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, policy-based routing (PBR), RIPng, MPLS |
| Dimensions (WxDxH) | 44.5 cm x 48.8 cm x 4.4 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| Jumbo Frame Support | 9198 bytes |

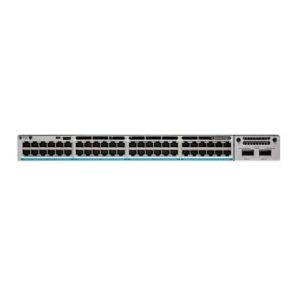

| Product Description | Cisco Catalyst 9300 (Higher Scale) - Network Advantage - switch - 48 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 32000 entries |
| Power Over Ethernet (PoE) | UPOE |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
