| Ports | 32 x 40 Gigabit QSFP |
| Power | AC 120/230 V (50 - 60 Hz) |
| Weight | 9.91 kg |
| Subtype | 40 Gigabit Ethernet |
| Capacity | Routing table entries: 80000 ? Indirect IPv4 routes: 212000 ? Host IPv4 routes: 90000 ? Indirect IPv6 routes: 212000 ? Host IPv6 routes: 90000 ? Multicast scale: 32000 ? QoS ACL scale: 16000 ? Security ACL scale: 270000 ? FNF entries: 96000 ? VLAN IDs: 4000 ? Switched virtual interfaces (SVIs): 4000 |
| Features | DHCP support, NAT support, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), 802.1x authentication, integrated Wireshark, Ethernet over MPLS (EoMPLS), Private VLAN, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), First Hop Security (FHS) |
| Device Type | Switch - 32 ports - L3 - Managed - stackable |
| Performance | Switching capacity (full duplex): 3.2 Tbps ? Forwarding rate: 1 Bpps |
| Enclosure Type | Rack-mountable 1U |
| Power Redundancy | Optional |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, IGMP, VRRP, MSDP, policy-based routing (PBR), RIPng |
| Dimensions (WxDxH) | 44.5 cm x 45.7 cm x 4.39 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba |
| Jumbo Frame Support | 9198 bytes |

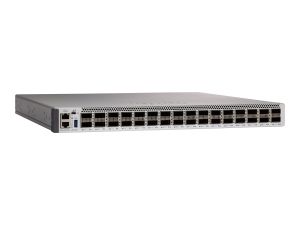

| Product Description | Cisco Catalyst 9500 - Network Essentials - switch - 32 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 64K entries |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF |
