All stock codes associated to this product
4752224002150, CRS3124C+8XGRM, CRS312-4C+8XG-RM

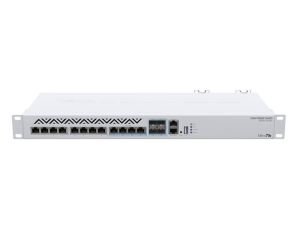

Mikrotik CRS312-4C+8XG-RM 12-Port 10G Switch Dual Power Supply Rack Kit
Remove the bottleneck from your network setup it is time to upgrade that 1 Gigabit switch to something truly powerful and enjoy real speed. Introducing CRS312-4C+8XG-RM our first product with 10G RJ45 Ethernet ports. Moreover, it also has 4 x 10G combo ports: use them for 10G RJ45 Ethernet or 10G SFP+, when you need an additional fiber connection. Combo ports can be used alongside the 8 regular 10G RJ45 Ethernet ports at all times. These ports can also be software selected, so you can use RouterOS scripting, to decide which combo ports will be active.
This device is a practical solution for those who work with huge data files and need fast, capable connection 24/7: multimedia production, scientific research, game development, big data analysis and so on. CRS312-4C+8XG-RM has a dual power supply for redundancy no unexpected downtime when the deadlines are looming. It has a full size USB, a console port for configuration and a 1U rackmount case fits all the standard racks.
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.
This switch has a great total non-blocking throughput of 120 Gbps, switching capacity of 240 Gbps and forwarding rate of 178 Mpps. CRS312-4C+8XG-RM built for professionals, great for everyone!
Specifications:
Product code: CRS312-4C+8XG-RM
Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 443 x 183 x 44 mm
RouterOS licence: 5
Operating System: RouterOS / SwitchOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -30C to 70C
Powering:
Number of AC inputs: 2
AC input range: 100-240
Max power consumption: 60 W
Cooling type: 4 fans
Ethernet:
10/100 Ethernet ports: 1
Number of Combo 10G Ethernet/ SFP+ ports: 4
Number of 1G/2.5G/5G/10G Ethernet ports: 8
Peripherals:
Serial console port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Other:
CPU temperature monitor: Yes
Voltage Monitor: Yes
Certification & Approvals:
Certification: CE, EAC, ROHS
