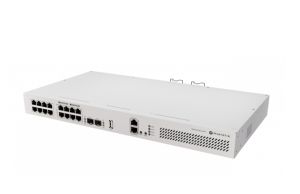

MikroTik CRS418-8P-8G-2S+RM Cloud Router Switch
Product code: CRS418-8P-8G-2S+RM
The MikroTik CRS418-8P-8G-2S+RM is a 1U Cloud Router Switch for small and medium networks that need Gigabit access, PoE-out, 10G fibre uplinks and RouterOS v7 control in one rackmount platform.
Use the CRS418-8P-8G-2S+RM for office switching, access-layer PoE, VLAN segmentation, L3 hardware offloading, high-speed uplinks and compact server-room deployments.
16 Gigabit ports
Seventeen 10/100/1000 Ethernet ports are available, including a dedicated management port and eight PoE-out access ports.
Eight PoE-out ports
Ether9 to Ether16 provide 802.3af/at PoE-out with up to 150 W total output for access points, cameras and other edge devices.
Dual 10G SFP+ uplinks
Two SFP+ cages support high-speed fibre links to core switches, storage, media servers or ISP handoff equipment.
RouterOS v7 performance
A quad-core 2.2 GHz ARM CPU, 1 GB RAM and RouterOS v7 give the switch advanced routing, monitoring and control features.
Ideal applications
- Access-layer switching with PoE-powered devices
- Small and medium office network cores
- VLAN and Layer 2/Layer 3 segmentation
- 10G fibre uplinks to storage, servers or core switches
- Rackmount deployments needing redundant AC inputs
Key specifications
- Product code: CRS418-8P-8G-2S+RM
- CPU: IPQ-8072 quad-core ARM 64-bit
- CPU frequency: 2208 MHz
- Memory: 1 GB RAM
- Storage: 128 MB NAND
- Operating system: RouterOS v7, license level 5
- Switch chip: 98DX226S
- Ethernet: 17 x 10/100/1000 ports
- PoE-out: 8 x 1G PoE-out ports, Ether9-Ether16
- PoE standards: 802.3af/at
- Total PoE output: 150 W total output power
- Fibre: 2 x 10G SFP+ ports
- USB: USB 3.0 Type-A
- Power: 2 x 100-240 V AC inputs, 215 W max consumption
- Cooling: 4 fans
- Operating temperature: -20C to 70C; IP20; CE, EAC, ROHS
