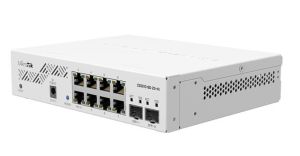

MikroTik CSS610-8P-2S+IN POE Cloud Smart Switch 2SPP+ and SwitchOS

Mikrotik CSS610-8P-2S+IN POE Cloud Smart Switch 2SPP+ and SwitchOS

The Mikrotik CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features, and price offers unbelievable scalability potential.

There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at PoE-out.

This switch is all about nice and easy setups. This Mikrotik Switches compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration. You can even configure this switch from your web browser! It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields.

But the real blessing is the combination of SFP+ and PoE-out Ethernet ports. With this setup, you can do all kinds of things on a tight budget. CSS610 has an impressive total PoE-out budget of 140 W, so you can use even in the most intense scenarios like hotels, conference halls, or call centers! Use the PoE-out ports to connect the IP-phones while the SFP+ ports connect your primary server to the ISP. Or power a bunch of network cameras and instantly upload the footage to the cloud. And manage a cluster of wireless access points at the same time. Also, scalability is no longer a problem. With our pricing, you can afford a switch on every floor!

Mikrotik CSS610-8P-2S+IN Specifications

• Product code CSS610-8P-2S+IN

• Number of 1G Ethernet ports 8

• Number of 10G SFP+ ports 2

• Switch chip model 88E6193X

• Dimensions 272 x 216 x 50 mm

• Operating temparature -40C to +70C

Powering

• Number of DC inputs 1

• DC jack input Voltage 48-57 V

• Max power consumption without attachments 12 W

• Max power consumption 162 W

• Number of AC inputs 1

• Nominal voltage 54 V

• Nominal current 2.8 A

• AC input range 100-240 V

• Max power consumption (without attachments) 12 W

• Max power consumption 162 W

• PoE-out 802.3af/at

• Smart PoE Controller

• PoE-out ports Ether1-Ether8, max out per port output (input < 30 V): 1000 mA,

• max out per port output (input > 30 V): 625 mA

• Total output power 140 W
